Panduit FRTSC12LBL | FIBERRUNNER HORIZONTAL TEE COVER
Regular price
$231.40
Unit price
Brand: Panduit
|
SKU:
10142773
Regular price
$231.40
Unit price
Description
Description
Panduit FRTSC12LBL | FIBERRUNNER HORIZONTAL TEE COVER

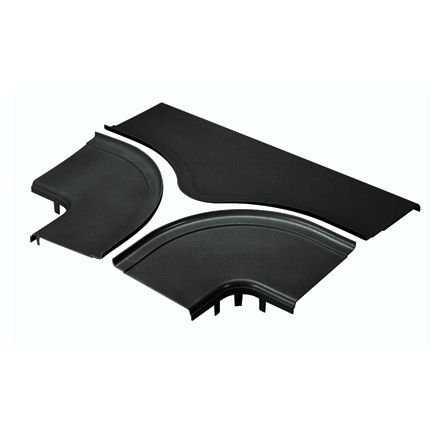

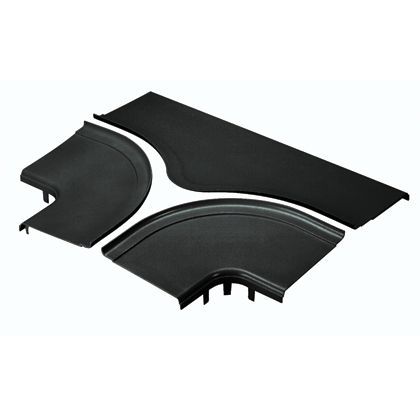

The FiberRunner 12x4 Split Cover is optional for the horizontal tee fitting FRT12X4LBL. The snap-on feature allows the cover to be installed and removed with no tools required. The split cover creates a radiused 0.75 inch (19mm) opening for easy access to add or remove cables.
Panduit FRTSC12LBL Duct Fiberrunner12"wx4"h Horz Tee Fitting cover Blk Rohs Lszh
Specifications
Specifications
Panduit - FRTSC12LBL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FRTSC12LBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRTSC12LBL |
| Item Description | FIBERRUNNER HORIZONTAL TEE COVER |
| Application | Data Centers and Telco Central Offices |
| Product Type | Tee Fitting Cover |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Color | Black |
| For Use With | 12x4 FiberRunner System |
| Material | PC/ABS |
| Overall Height (In.) | 2.88 |
| Overall Height (mm) | 73.2 |
| Overall Length (In.) | 18 |
| Overall Length (mm) | 457.2 |
| Overall Width (In.) | 22.25 |
| Overall Width (mm) | 565.2 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 12x4 |
| Components | COVERS |
| Finish | BLACK |
| Material | PLASTIC |
| Type | CABLE ROUTING / WIRING DUCT |
| UNSPSC Code | 39131713 |
Panduit - FRTSC12LBL - Package Information
| UPC | 61305676407 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.4286 |
| Standard Ctn. Quantity | 5 |
| Standard Ctn. Volume (cf) | 2.1430 |
Panduit - FRTSC12LBL - Videos
| Video 1 | Click to View |
|---|
