Panduit FRTSC12W6YL | FiberRunner Tee Fitting Cover
Regular price
$171.71
Unit price
Brand: Panduit
|
SKU:
278623
Regular price
$171.71
Unit price
Description
Description

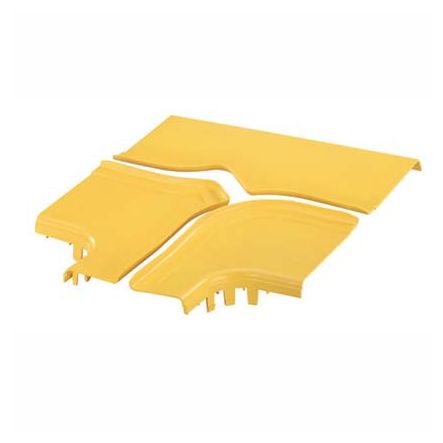

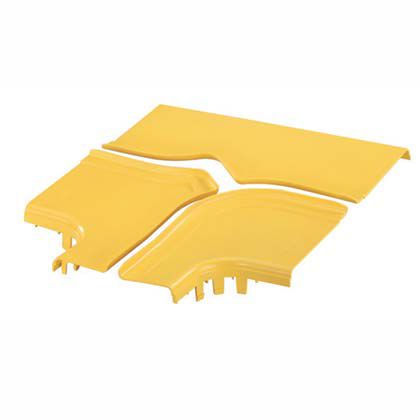

Panduit FRTSC12W6YL | FiberRunner Tee Fitting Cover
Optional split cover for the horizontal tee with 6x4 exit fitting FRT12X4W6YL. Snap-on feature allows cover to be installed and removed without tools. Creates radiused 3/4 (19mm) opening for easy access to add or remove cables.
Panduit FiberRunner - Cable raceway tee cover - yellow - FRTSC12W6YL.
Specifications
Specifications
Panduit - FRTSC12W6YL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FRTSC12W6YL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRTSC12W6YL |
| Item Description | FiberRunner Tee Fitting Cover |
| Application | Segregate, Route, and Protect Fiber Optic and High Performance Copper Cabling. It is Suited for Data Center Applications where Cable is Routed from Distribution Areas to Equipment Cabinets or Racks. It is Used in Telco Central Offices to Route Fiber Optic |
| Product Type | Tee Fitting Cover |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Channel Material | Rigid PVC |
| Color | Yellow |
| Fitting Type | Tee with 6" Exits Cover |
| Fitting Material | ABS |
| For Use With | 12x4 |
| Material | ABS |
| Overall Height (In.) | 2.78 |
| Overall Height (mm) | 70.6 |
| Overall Length (In.) | 17.51 |
| Overall Length (mm) | 444.8 |
| Overall Width (In.) | 14.5 |
| Overall Width (mm) | 368.3 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 12x4 |
Panduit - FRTSC12W6YL - Package Information
| UPC | 07498383559 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.3269 |
| Standard Ctn. Quantity | 5 |
| Standard Ctn. Volume (cf) | 1.6344 |
Panduit - FRTSC12W6YL - Videos
| Video 1 | Click to View |
|---|
