Brand: Panduit
|
SKU:
FRUPS4X4YL
Panduit FRUPS4X4YL | FiberRunner Up Spout
Regular price
$183.08
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FRUPS4X4YL | FiberRunner Up Spout
Regular price
$183.08
Unit price
Description
Description

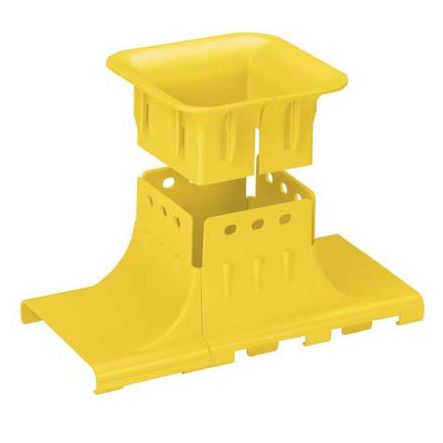

Panduit FRUPS4X4YL | FiberRunner Up Spout
4x4 Up Spout. Allows cable to be directed upward out of the channel deployed directly below racks and cabinets in underfloor installations. Provides 2in (50.8mm) bend radius. Snaps directly onto the channel and can be positioned to allow cables to be laid in. A 1in (25.4mm) top bezel is included. Other fittings can be installed for specific applications including FTR4X4YLL and FIDT4X4BL. Yellow.
Panduit - FRUPS4X4YL - Features
- Spill-overs allow safe transition from horizontal to vertical runs
- 2"; (50.8mm) bend radius control
- Transition to channel, slotted channel, and corrugated loom tubing
- For other standard colors replace suffix YL (Yellow) with OR (Orange) or BL (Black)
- Specification Description
- 4x4 Up Spout
- Material: ABS
- Color: Yellow
- Dimension: 5.2 Inch Height x 5.43 Inch Width (132.1 mm x 137.9 mm)
Specifications
Specifications
Panduit - FRUPS4X4YL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Spillouts
Panduit - FRUPS4X4YL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRUPS4X4YL |
| Item Description | FiberRunner Up Spout |
| Application | Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High Performance Copper Cabling. It is Suited for Data Center Applications where Cable is Routed from Distribution Areas to Equipment |
| Product Type | Up Spout |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| For Use With | 4X4 Routing System |
| Includes | (2) Up Spout Components, (1) Radiused Bezel |
| Material | ABS |
| Overall Height (In.) | 5.2 |
| Overall Height (mm) | 132.1 |
| Overall Length (In.) | 10 |
| Overall Length (mm) | 254 |
| Overall Width (In.) | 5.43 |
| Overall Width (mm) | 137.9 |
| Standards Met | RoHS Compliant |
| System Dimensions | 4x4 |
| Color | Yellow |
Panduit - FRUPS4X4YL - Package Information
| UPC | 07498384797 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.2616 |
| Standard. Ctn. Quantity | 5 |
| Standard. Ctn. Volume (cf) | 1.3080 |
