Panduit FRVT12X4LBL | FIBERRUNNER VERTICAL TEE
Regular price
$298.80
Unit price
Brand: Panduit
|
SKU:
10142785
Regular price
$298.80
Unit price
Description
Description

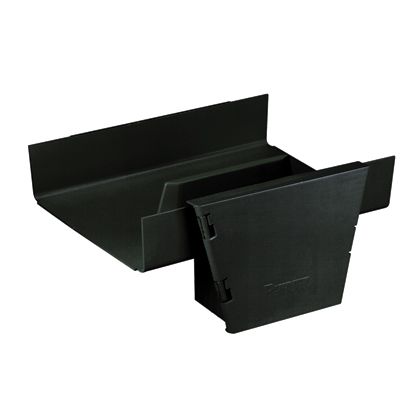

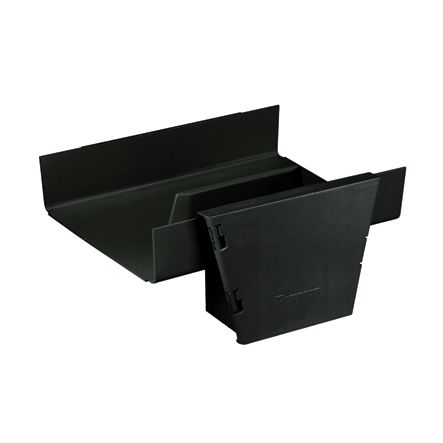

Panduit FRVT12X4LBL | FIBERRUNNER VERTICAL TEE
The FiberRunner 12x4 Vertical Tee creates a 90° vertical drop from a horizontal run.
Panduit FRVT12X4LBL Fiberrunner Vert Tee Fitting12x4 System W/hinged Door black Rohs Lszh
Specifications
Specifications
Panduit - FRVT12X4LBL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FRVT12X4LBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRVT12X4LBL |
| Item Description | FIBERRUNNER VERTICAL TEE |
| Application | Data Centers and Telco Central Offices |
| Product Type | Tee Fitting |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Color | Black |
| For Use With | 12x4 FiberRunner System |
| Material | PC/ABS |
| Overall Height (In.) | 8.38 |
| Overall Height (mm) | 212.8 |
| Overall Length (In.) | 14.63 |
| Overall Length (mm) | 371.6 |
| Overall Width (In.) | 18 |
| Overall Width (mm) | 457.2 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 12x4 |
| Components | SPILLOUTS / DOWNSPOUTS |
| Finish | BLACK |
| Material | PLASTIC |
| Type | CABLE ROUTING / WIRING DUCT |
| UNSPSC Code | 39131713 |
Panduit - FRVT12X4LBL - Package Information
| UPC | 61305676391 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 1.9419 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
