Brand: Panduit
|
SKU:
9992092
Panduit FRVT12X4LYL | FiberRunner Vertical Tee, 90°, 12x4, Yellow
Regular price
$298.80
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FRVT12X4LYL | FiberRunner Vertical Tee, 90°, 12x4, Yellow
Regular price
$298.80
Unit price
Description
Description

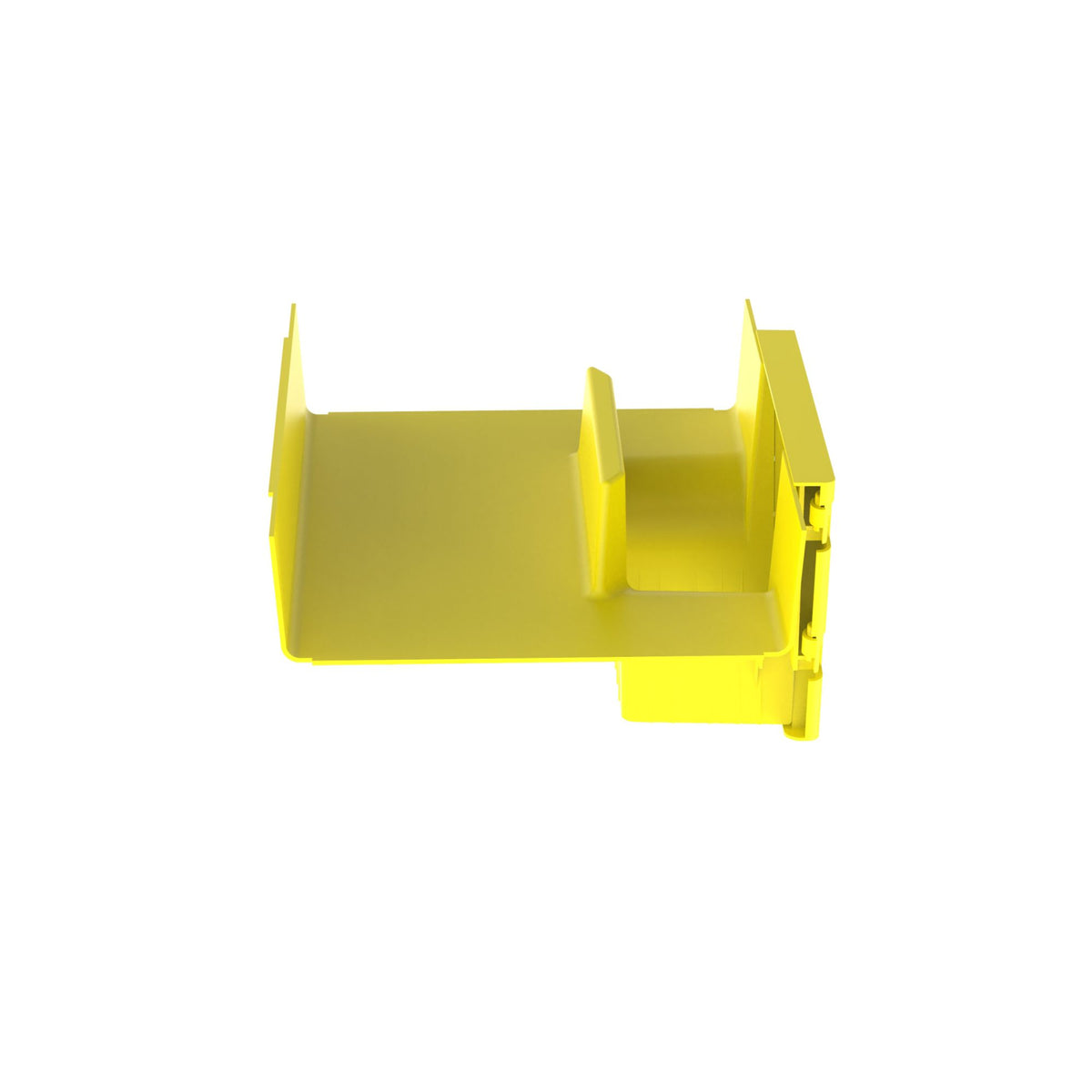

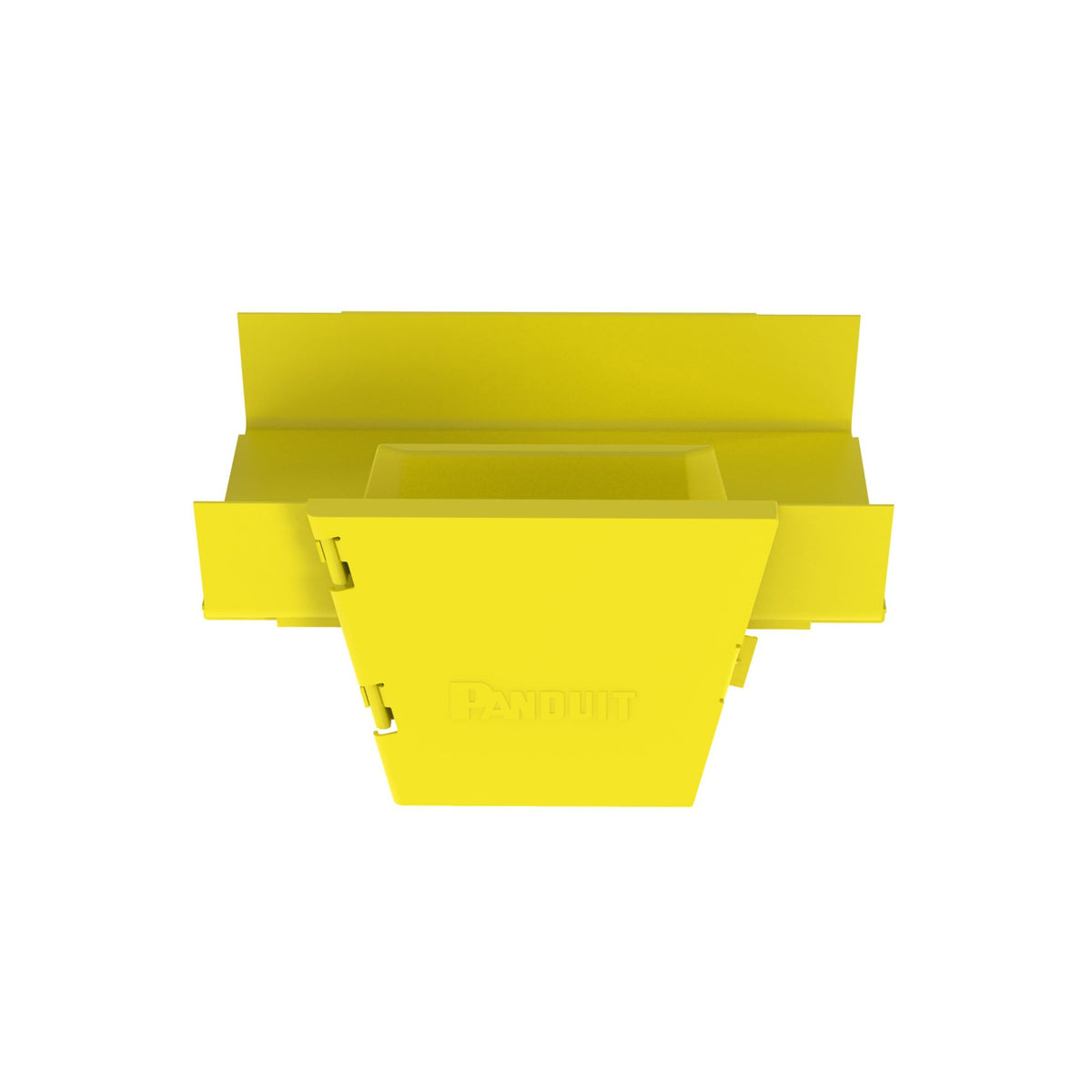

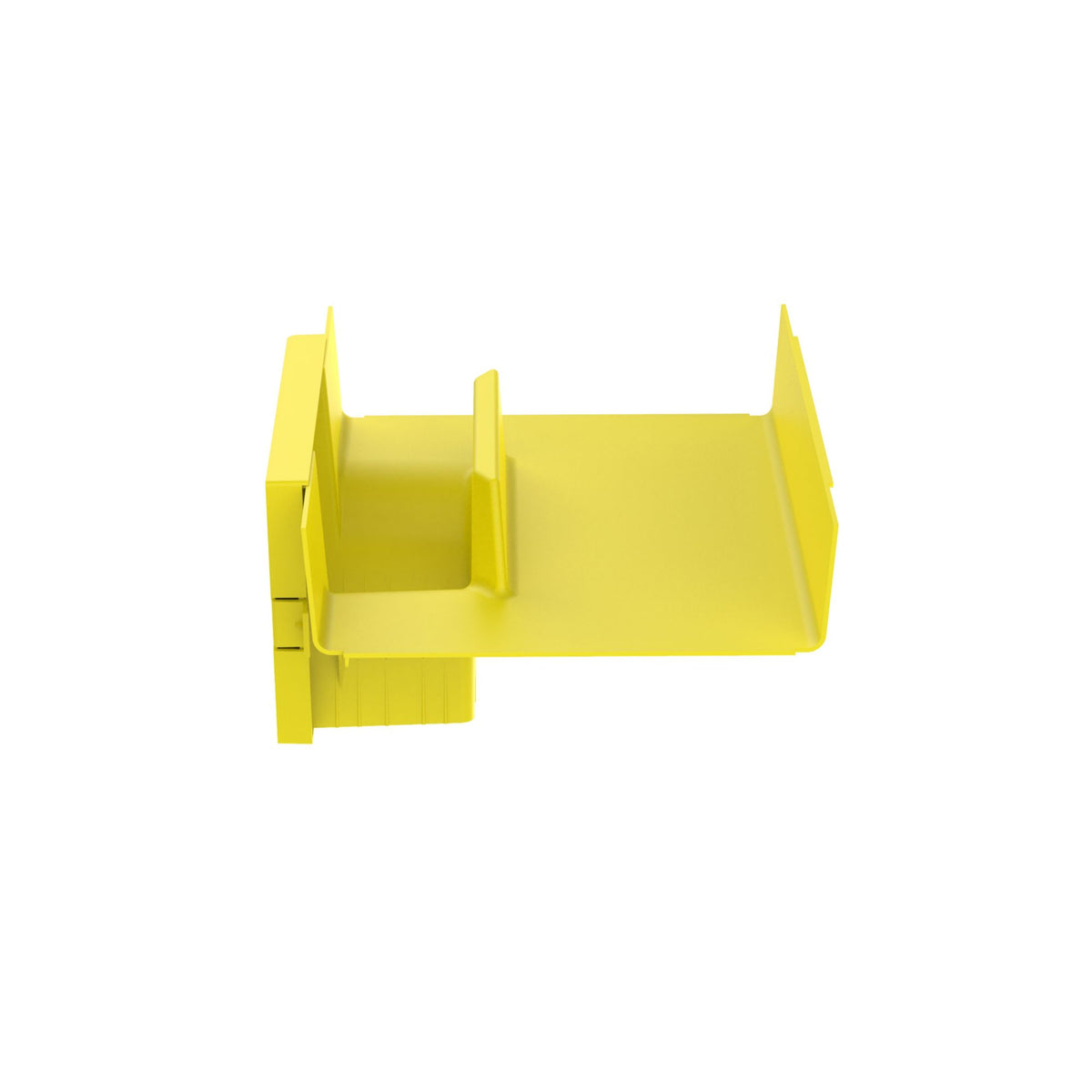

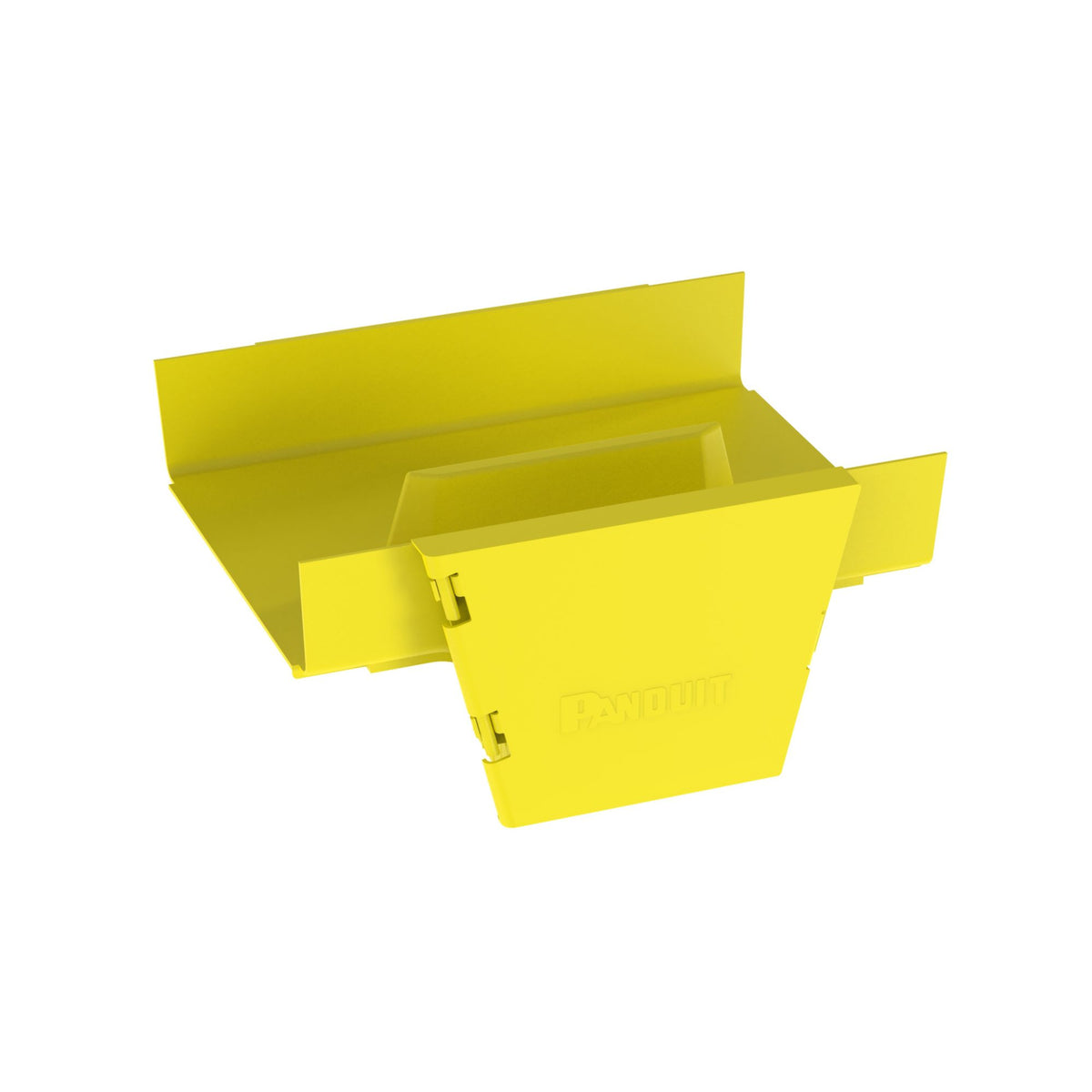

Panduit FRVT12X4LYL | FiberRunner Vertical Tee, 90°, 12x4, Yellow
The FiberRunner 12x4 Vertical Tee creates a 90° vertical drop from a horizontal run.
Panduit FRVT12X4LYL Fiberrunner Vert Tee Fitting12"x4" Yellow Lszhrohs
Specifications
Specifications
Panduit - FRVT12X4LYL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Bends, Crosses, Tees & End Caps
Panduit - FRVT12X4LYL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FRVT12X4LYL |
| Item Description | FiberRunner Vertical Tee, 90°, 12x4, Yellow |
| Application | Data Centers and Telco Central Offices |
| Product Type | Tee Fitting |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Channel Material | PC |
| Color | Yellow |
| Fitting Type | Vertical Tee |
| Fitting Material | PC/ABS |
| For Use With | 12x4 FiberRunner System |
| Material | PC/ABS |
| Overall Height (In.) | 8.38 |
| Overall Height (mm) | 212.8 |
| Overall Length (In.) | 14.63 |
| Overall Length (mm) | 371.6 |
| Overall Width (In.) | 18 |
| Overall Width (mm) | 457.2 |
| Standards Met | RoHS Compliant, UL Listed to 2024 Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 12x4 |
| Components | FITTINGS |
| Finish | YELLOW |
| Material | PLASTIC |
| Type | CABLE ROUTING / WIRING DUCT |
| UNSPSC Code | 39131712 |
Panduit - FRVT12X4LYL - Package Information
| UPC | 61305676390 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 1.8681 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
