Brand: Panduit
|
SKU:
1053788
Panduit FS.5X1LG6NM | Base Wiring Duct | UPC - 07498333966
Regular price
$33.95
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FS.5X1LG6NM | Base Wiring Duct | UPC - 07498333966
Regular price
$33.95
Unit price
Description
Description

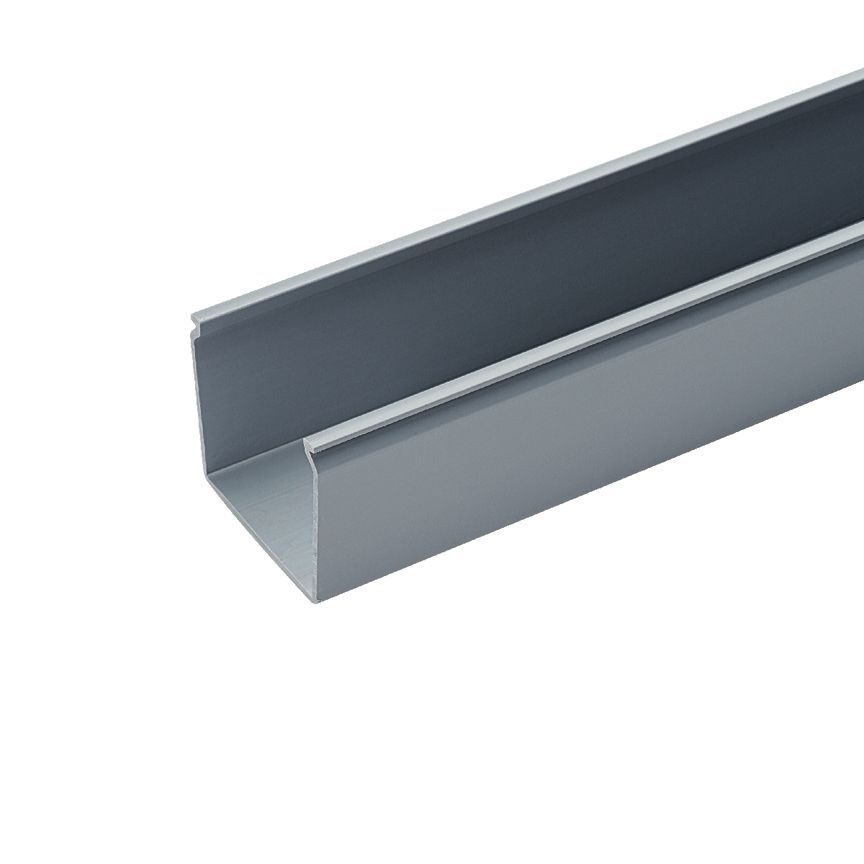

Panduit Panduct Wiring Duct, Type FS Base, 0.69 in Width, 1.06 in Depth, 6 ft Length, 0.05 in Thickness, Solid Wall Slot, Surface Mounting, No Adhesive Backed, Lead-Free PVC, Light Gray
Features + Benefits
- Solid wall design fully encloses cables providing maximum protection and aesthetics
- Non-slip cover will not slide easily when installed on duct base
- Flush cover design holds more wires than traditional duct designs
- Base scoreline allows full wire carrying capacity at wiring duct junctions such as tees and corners
- Specially formulated lead-free material eliminates health concerns associated with PVC which contains lead
Panduit FS.5X1LG6NM Key Specs
| Application | (1) Type C Wiring Duct Cover with Protective Film Reduces Scrap and Labor Costs by Protecting the Surface during Storage, Handling, and Installation |
| Product Type | Base Wiring Duct |
| Color | Light Gray |
| Cover Part Number | C.5LG6 |
| Flammability Rating | UL94 V-0 |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Material | Lead-Free PVC |
| Mount Method | No Mounting Holes |
| Measurement System | Metric |
| Wiring Duct Style | Solid Wall Wiring Duct |
| Wiring Duct Type | FS |
| Overall Height (In.) | 1.06 |
| Overall Height (mm) | 26.9 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 0.69 |
| Overall Width (mm) | 17.5 |
| Sub Brand | Panduct |
| Part Features | Solid wall design fully encloses cables and cord sets providing maximum protection and aethetics |
Panduit FS.5X1LG6NM Data Sheets
| Part Drawings | Solid Wall Wiring Duct | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - FS.5X.5LG6NM Product Page | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - FS.5X.5LG6NM Product Page-A101 | Download and View |
