Panduit FS.75X.75LG6NM | Base Wiring Duct | UPC - 07498333974
Description
Description
The temporary protection film shall protect duct covers from damage during the installation process. The film shall be see-through, clear and peel away easily from the cover without leaving a sticky residue. The film shall provide a place for writing notes without allowing the ink to bleed through.

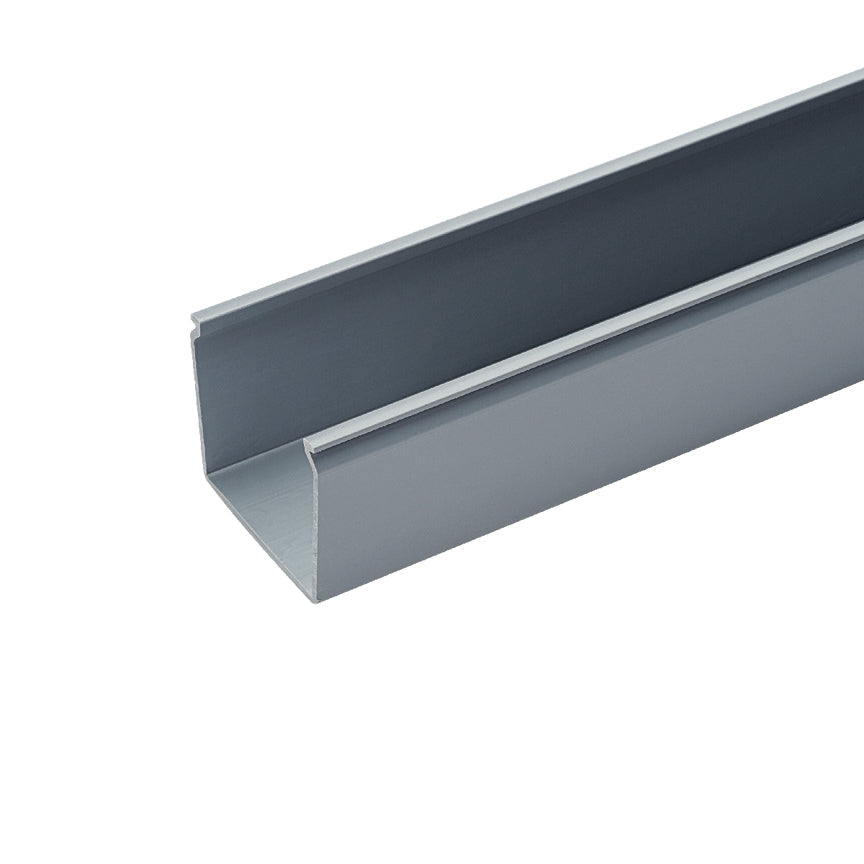

Panduit Panduct Wiring Duct, Type FS Base, 0.93 in Width, 0.82 in Depth, 6 ft Length, 0.06 in Thickness, Solid Wall Slot, Surface Mounting, No Adhesive Backed, Lead-Free PVC, Light Gray
Features + Benefits
- Solid wall design fully encloses cables providing maximum protection and aesthetics
- Non-slip cover will not slide easily when installed on duct base
- Flush cover design holds more wires than traditional duct designs
- Base scoreline allows full wire carrying capacity at wiring duct junctions such as tees and corners
- Specially formulated lead-free material eliminates health concerns associated with PVC which contains lead
Panduit FS.75X.75LG6NM | Base Wiring Duct | UPC - 07498333974 Key Specs
| Application | (1) Type C Wiring Duct Cover with Protective Film Reduces Scrap and Labor Costs by Protecting the Surface during Storage, Handling, and Installation |
| Product Type | Base Wiring Duct |
| Color | Light Gray |
| Cover Part Number | C.75LG6 |
| Flammability Rating | UL94 V-0 |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Material | Lead-Free PVC |
| Mount Method | No Mounting Holes |
| Measurement System | Metric |
| Wiring Duct Style | Solid Wall Wiring Duct |
| Wiring Duct Type | FS |
| Overall Height (In.) | 0.82 |
| Overall Height (mm) | 20.8 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 0.92 |
| Overall Width (mm) | 23.6 |
| Sub Brand | Panduct |
| Part Features | Solid wall design fully encloses cables and cord sets providing maximum protection and aethetics |
Panduit FS.75X.75LG6NM | Base Wiring Duct | UPC - 07498333974 Data Sheets
| Part Drawings | Solid Wall Wiring Duct | Download and View |
Panduit FS.75X.75LG6NM | Base Wiring Duct | UPC - 07498333974 Environmental Information
| Panduit's RoHS Statement | Download and View |
