Panduit FS1.5X2LG6NM | Panduct Type FS Solid Wall Wiring Duct
Regular price
$10.08
Unit price
Brand: Panduit
|
SKU:
10647320
Regular price
$10.08
Unit price
Description
Description

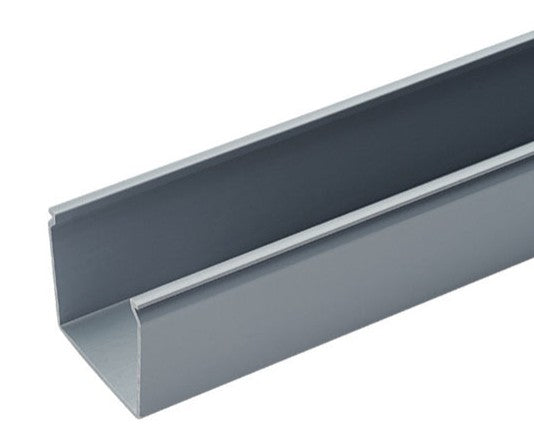

Panduit FS1.5X2LG6NM | Panduct Type FS Solid Wall Wiring Duct

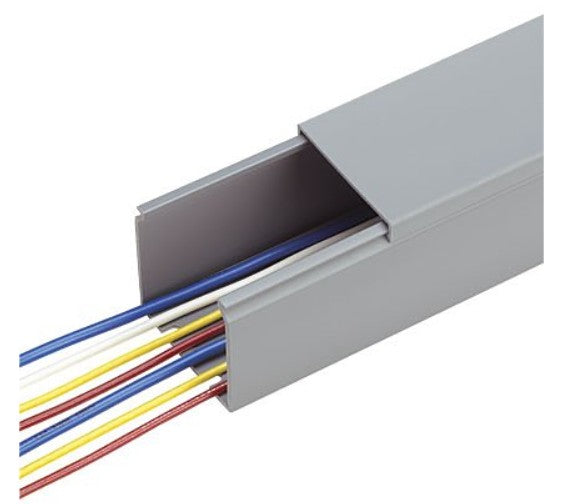

Our Type FS solid wall wiring duct fully protects cables and enhances control panel aesthetics with a sleek, enclosed design.
Specifications
Specifications
Panduit - FS1.5X2LG6NM - Specifications
| Product Type | Base Wiring Duct |
|---|---|
| Application | Solid Wall Wiring Duct for Control Panel and Machine Builder Applications |
| Color | Light Gray |
| Cover Part Number | C1.5LG6 |
| Flammability Rating | UL 94 V-0 |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant |
| Material | PVC |
| Material Properties | Lead-Free |
| Mount Method | No Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Solid Wall Wiring Duct |
| Wiring Duct Type | FS |
| Nominal Width (In.) | 1.5 |
| Nominal Height (In.) | 2 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.83 |
| Overall Width (In.) | 1.75 |
| Overall Width (mm) | 44.5 |
| Overall Height (In.) | 2.12 |
Documents and Downloads
