Brand: Panduit
|
SKU:
FS1X1LG6NM
Panduit FS1X1LG6NM Solid Raceway, PVC, 1";X1";X6’;L, Light Gray, No Mounting Holes
Regular price
$35.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FS1X1LG6NM Solid Raceway, PVC, 1";X1";X6’;L, Ligh...
Regular price
$35.24
Unit price
Description
Description

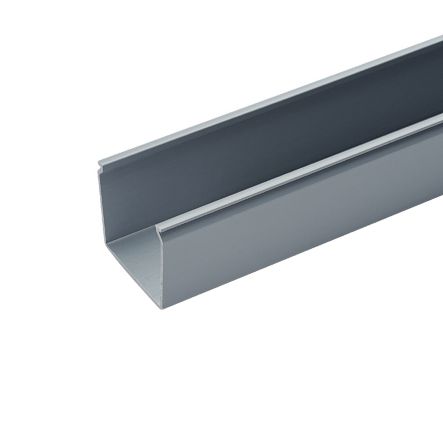

Panduit FS1X1LG6NM | Panduct FS1X1LG6NM Base Wiring Duct

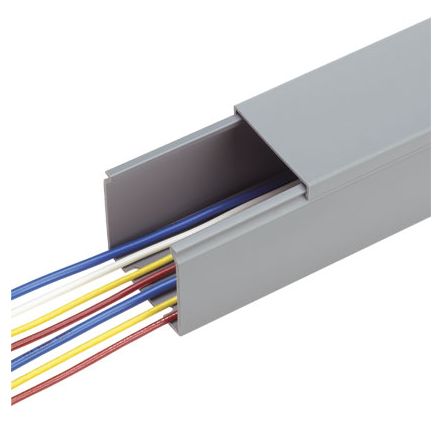

The FS1X1LG6NM Panduct Lead-Free PVC Solid Wall Wiring Duct design fully encloses cables providing maximum protection and aesthetics. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). No mounting holes provided. Lead-free PVC. 1" x 1" (25.4 mm x 25.4 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray.
Panduit - FS1X1LG6NM - Features
- Solid Wall Raceway used in non-plenum applications.
- Specifications
- Made of lead-free PVC
- UL Recognized for continuous use temperatures up to 122F (50C)
- UL94 Flammability Rating V-0
- Supplied with mounting holes
Specifications
Specifications
Panduit - FS1X1LG6NM - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - FS1X1LG6NM - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FS1X1LG6NM |
| Item Description | Panduct FS1X1LG6NM Base Wiring Duct |
| Application | Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications |
| Product Type | Base Wiring Duct |
| Color | Light Gray |
| Cover Part Number | C1LG6 |
| Flammability Rating | UL94 V-0 |
| Includes | Wiring Duct Base |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Material | Lead-Free PVC |
| Mount Method | No Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Solid Wall Wiring Duct |
| Wiring Duct Type | FS |
| Overall Height (In.) | 1.12 |
| Overall Height (mm) | 28.4 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 1.25 |
| Overall Width (mm) | 31.8 |
| Sub Brand | Panduct |
| Part Features | Solid wall design fully encloses cables and cord sets providing maximum protection and aethetics |
Panduit - FS1X1LG6NM - Package Information
| UPC | 07498333986 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.0478 |
| Standard. Ctn. Quantity | 120 |
| Standard. Ctn. Volume (cf) | 0.9558 |
