Brand: Panduit
|
SKU:
10153349
Panduit FS4X2LG6NM | Panduct FS4X2LG6NM Base Wiring Duct
Regular price
$67.88
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FS4X2LG6NM | Panduct FS4X2LG6NM Base Wiring Duct
Regular price
$67.88
Unit price
Description
Description

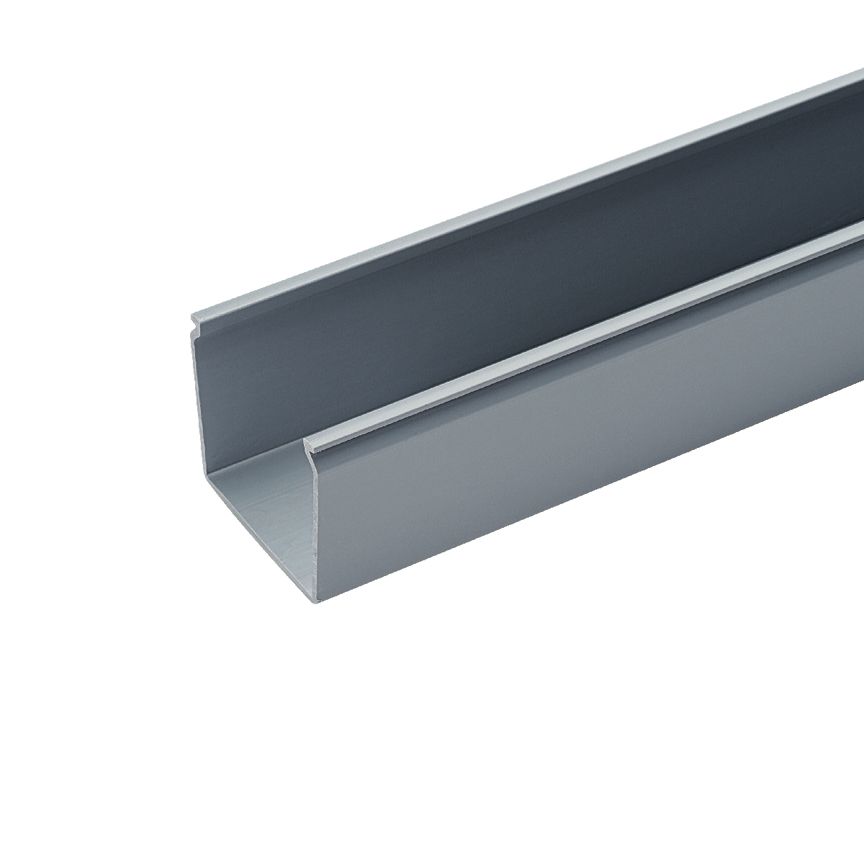

Panduit FS4X2LG6NM | Panduct FS4X2LG6NM Base Wiring Duct

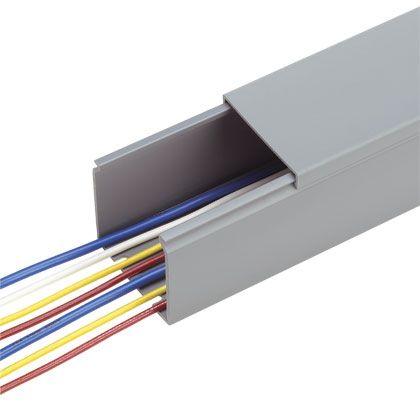

The FS4X2LG6NM Panduct Lead-Free PVC Solid Wall Wiring Duct design fully encloses cables providing maximum protection and aesthetics. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). No mounting holes provided. Lead-free PVC. 4" x 2" (101.6 mm x 50.8 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray.
Panduit FS4X2LG6NM Panduit Fs4x2lg6nm Raceway & D
Specifications
Specifications
Panduit - FS4X2LG6NM - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - FS4X2LG6NM - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FS4X2LG6NM |
| Item Description | Panduct FS4X2LG6NM Base Wiring Duct |
| Application | Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications |
| Product Type | Base Wiring Duct |
| Color | Light Gray |
| Cover Part Number | C4LG6 |
| Flammability Rating | UL94 V-0 |
| Includes | Wiring Duct Base |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Material | Lead-Free PVC |
| Mount Method | No Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Solid Wall Wiring Duct |
| Wiring Duct Type | FS |
| Overall Height (In.) | 2.12 |
| Overall Height (mm) | 53.8 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 4.25 |
| Overall Width (mm) | 108 |
| Sub Brand | Panduct |
| Part Features | Solid wall design fully encloses cables and cord sets providing maximum protection and aethetics |
Panduit - FS4X2LG6NM - Package Information
| UPC | 07498334152 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.2864 |
| Standard Ctn. Quantity | 60 |
| Standard Ctn. Volume (cf) | 2.8642 |
