Brand: Panduit
|
SKU:
1035228
Panduit FS4X4LG6 | Base Wiring Duct | UPC - 07498334166
Regular price
$103.12
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FS4X4LG6 | Base Wiring Duct | UPC - 07498334166
Regular price
$103.12
Unit price
Description
Description

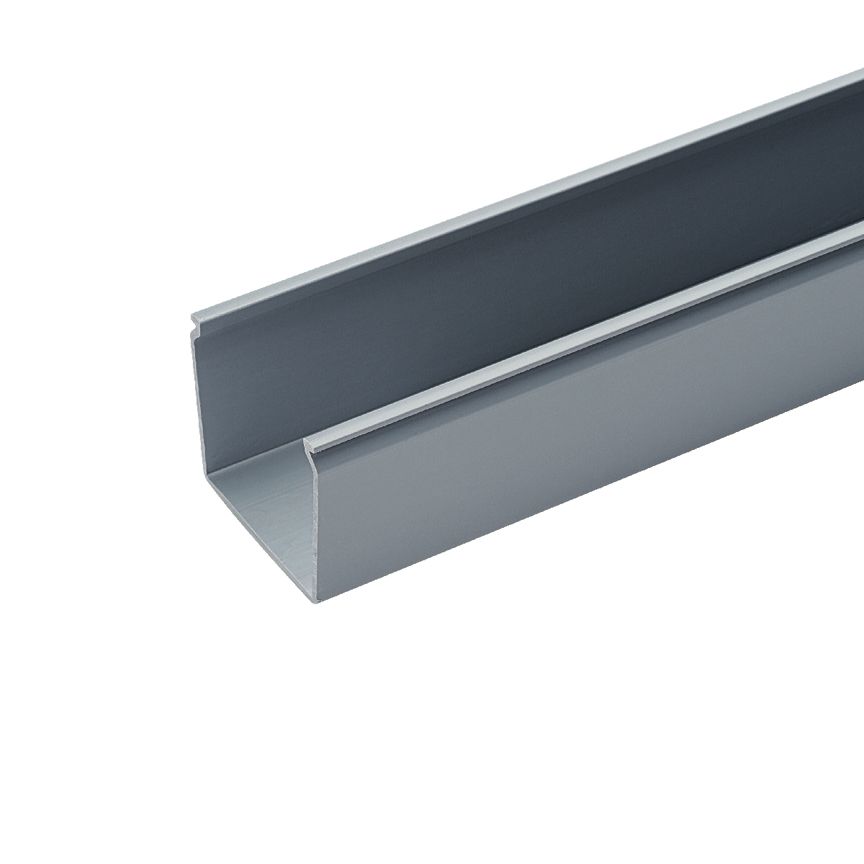

Panduit Panduct Solid Wall Wiring Duct, Type FS Base, 4-1/4 in Width, 4.1 in Depth, 6 ft Length, 2 mil Thickness, Surface Mount, Adhesive Backed: No, Lead-Free PVC, Light Gray
Features + Benefits
- Solid wall design fully encloses cables providing maximum protection and aesthetics
- Non-slip cover will not slide easily when installed on duct base
- Flush cover design holds more wires than traditional duct designs
- Base scoreline allows full wire carrying capacity at wiring duct junctions such as tees and corners
- Specially formulated lead-free material eliminates health concerns associated with PVC which contains lead
Panduit FS4X4LG6 Key Specs
| Application | (1) Type C Wiring Duct Cover with Protective Film Reduces Scrap and Labor Costs by Protecting the Surface during Storage, Handling, and Installation |
| Product Type | Base Wiring Duct |
| Color | Light Gray |
| Cover Part Number | C4LG6 |
| Flammability Rating | UL94 V-0 |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Material | Lead-Free PVC |
| Mount Method | Mounting Holes |
| Measurement System | Metric |
| Wiring Duct Style | Solid Wall Wiring Duct |
| Wiring Duct Type | FS |
| Overall Height (In.) | 4.1 |
| Overall Height (mm) | 104.1 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 4.24 |
| Overall Width (mm) | 107.7 |
| Sub Brand | Panduct |
| Part Features | Solid wall design fully encloses cables and cord sets providing maximum protection and aethetics |
Panduit FS4X4LG6 Data Sheets
| Specification Sheets | Type C Wiring Duct Cover with Protective Film | Download and View |
| Part Drawings | WIRING DUCT - TYPE FS DUCT WITH COVER 4 X 4 | Download and View |
| Selection Guides | Wiring Duct Product Selection Guide | Download and View |
| Technical References | Chemical Resistance Information | Download and View |
