Brand: Panduit
|
SKU:
968085

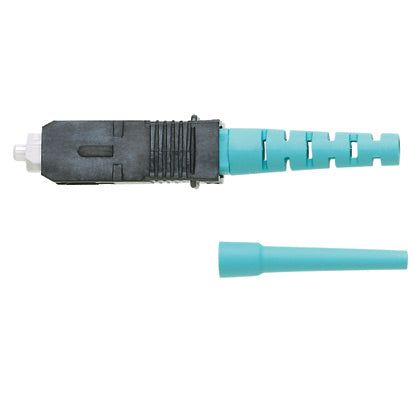

Panduit FSC2MCXAQ-C | Fiber Optic Connectors, SC2 OptiCam | UPC - 61305625637
Regular price
$1,997.73
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FSC2MCXAQ-C | Fiber Optic Connectors, SC2 OptiCam | UPC - 6...
Regular price
$1,997.73
Unit price
Description
Description
Panduit Fiber Optic Connector, SC2 Simplex Connector, 50/125 um OM3/OM4 Multi-Mode Fiber, 900 um Buffered Cable, Zirconia Ceramic Ferrule, Aqua
Features + Benefits
- Factory pre-polished fiber stub end face eliminates inconsistent and time consuming field polishing to deliver required optical performance
- Dual cam design with fiber and buffer clamps secures both the fiber and the buffer during the camming step to facilitate consistent termination results, reduces the termination time compared to conventional termination methods
- Allows up to two re-terminations to achieve optimum termination results, reduces the number of rejected connectors and terminations to provide yield rates approaching 100% for lower installed costs
- Translucent inner housing assembly facilitates inspection of the fiber termination quality, results in rapid installations, improved termination yields and lower installed costs
- Mechanical cable retention consistently provides higher than industry standard cable retention, requires no adhesive, speeding installation
- Reduces termination time (less than half the time of field polish connectors) and the number of installation tools required
- Non-optical disconnect design maintains data transmission under tensile loads
Panduit FSC2MCXAQ-C Key Specs
| Polish Type | Pre-Polished |
| Fiber Type | OM3/OM4 |
| Connection Type | SC |
| Sub Brand | OptiCam |
| Application | Maintenance or emergency restoration of fiber networks and retrofit/initial install in both behind-the-wall (BTW) and in the permanent side of panelized interconnect and cross-connect. |
| Body Style | Simplex |
| Color | Aqua |
| Boot Color | Aqua |
| Backbone Color | Natural |
| Fiber Diameter (µm) | 50 |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 26 |
| Standards Met | RoHS Compliant |
| Product Type | Fiber Optic Connectors, SC2 OptiCam |
Panduit FSC2MCXAQ-C Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCA10-14F-L Product Page | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
| Part Drawings | Copper Lug - One-Hole, Standard Barrel, 90° Angle Tongue | Download and View |
