Brand: Panduit
|
SKU:
968088
Panduit FSC2SCBU-C | Fiber Optic Connectors, SC2 OptiCam | UPC - 61305625643
Regular price
$1,997.73
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FSC2SCBU-C | Fiber Optic Connectors, SC2 OptiCam | UPC - 61...
Regular price
$1,997.73
Unit price
Description
Description

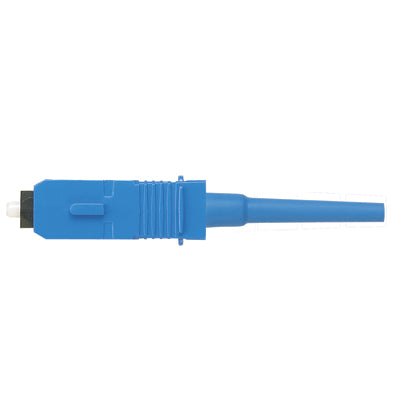

Panduit OptiCam Fiber Optic Connector, Pre-Polished, SC2 Simplex Connector, 9/125 um OS2 Single Mode Fiber, 900 um Buffered Cable, Zirconia Ceramic Ferrule, Ceramic, Blue
Features + Benefits
- Factory pre-polished fiber stub endface eliminates inconsistent and time consuming field polishing to deliver required optical performance, reduces termination time (less than half the time of field polish connectors) and the number of installation tools required
- Dual cam design with fiber and buffer clamps secures both the fiber and the buffer during the camming step to facilitate consistent termination results
- Allows up to two re-terminations to achieve optimum termination results, reduces the number of rejected connectors and terminations to provide yield rates approaching 100% for lower installed costs
- Translucent inner housing assembly facilitates inspection of the fiber termination quality, results in rapid installations, improved termination yields and lower installed costs
- Reduces the termination time compared to conventional termination methods
- Non-optical disconnect design maintains data transmission under tensile loads
- Mechanical cable retention consistently provides higher than industry standard cable retention, requires no adhesive, speeding installation
Panduit FSC2SCBU-C Key Specs
| Polish Type | Pre-Polished |
| Fiber Type | OS2 |
| Connection Type | SC |
| Sub Brand | OptiCam |
| Application | Maintenance or emergency restoration of fiber networks and retrofit/initial install in both behind-the-wall (BTW) and in the permanent side of panelized interconnect and cross-connect. |
| Body Style | Simplex |
| Color | Blue |
| Boot Color | Blue |
| Backbone Color | Natural |
| Fiber Diameter (µm) | 9 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Maximum Installation Temperature (°F) | 108 |
| Maximum Installation Temperature (°C) | 42 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Installation Temperature (°C) | 38 |
| Minimum Installation Temperature (°F) | 100 |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 50 |
| Standards Met | RoHS Compliant; Exceed TIA/EIA-568-B.3 performance requirements |
Panduit FSC2SCBU-C Data Sheets
| Part Drawings | HD Flex 4-Port Enclosure Rail Kit: 12F187LN-DC | Download and View |
| Installation Documents | HD Flex Fiber Cassette Enclosures: FS127A | Download and View |
