Panduit FSCBT2BU-X | SC Pot & Polish Boot for OS2
Regular price
$5.39
Unit price
Description
Description

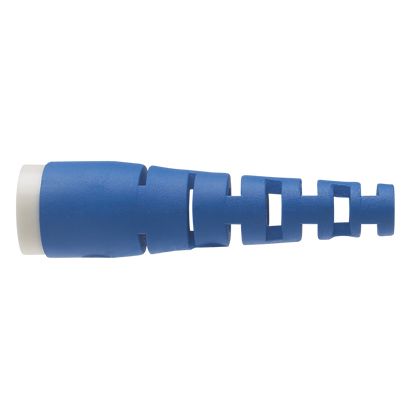

Panduit FSCBT2BU-X | SC Pot & Polish Boot for OS2
Enhance fiber optic cable protection and durability with our SC connector boot, ideal for data center and network applications.
OptiCam OS1/OS2 Single-mode 1.6/2.0mm Cable Retention Boot.
Panduit OptiCam Boot Assembly, Pre-Polished Singlemode, Series: SC2, For Use With: SC2 OptiCam Pre-Polished Fiber Optic Connectors, 1.6 mm, 2 mm Size, Rubber, Blue
Panduit - FSCBT2BU-X - Features
- Factory pre-polished fiber stub end face
- Dual cam design with fiber and buffer clamps
- Translucent housing assembly
- Non optical disconnect design
- Mechanical cable retention
- Allow termination of all OptiCam(TM) Connectors (LC, SC and ST) onto 1.6mm - 2.0mm or 3mm jacketed cable
- Color-coded in aqua for 10Gig(TM) 50/125µm fiber, black for 50/125µm or 62.5/125µm fiber and blue for single-mode fiber
- Provide mechanical cable retention that consistently meets or exceeds industry standard cable retention
- Require no adhesive, speeding installation
- LC and SC OptiCam(TM) Connectors provide non-optical disconnect to maintain data transmission under tensile loads for jacketed cable when terminated using OptiCam(TM) Cable Retention Boots
Specifications
Specifications
Panduit - FSCBT2BU-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FSCBT2BU-X |
| Connector Type | Boot |
| Fiber Type | Os1 Single-Mode |
| UNSPSC Code | 43223300 |
| Note | Cable retention boot assemblies consistently provide higher than industry standard cable retention. Intended for use in fixed installations which are outside the scope of RoHS. |
| Product Type | Fiber Optic Connector Boot |
| Fiber Type | OS1/OS2 |
| Color | Blue |
| Sub Brand | OptiCam |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 50 |
| Standards Met | Exceed TIA/EIA-568-B.3 performance requirements |
| Connection Type | SC |
| UPC | 07498339190 |
Panduit - FSCBT2BU-X - Environmental Information
| Moisture Sensitivity Level (MSL) | Not Applicable |
|---|
Panduit - FSCBT2BU-X - Videos
| Panduit FSCBT2BU-X Video 1 | Click to View |
|---|---|
| Panduit FSCBT2BU-X Video 2 | Click to View |
