Brand: Panduit
|
SKU:
313219
Panduit FSCDM | SC Dplx Conn, Pot & Polish for OM1/2
Regular price
$29.91
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FSCDM | SC Dplx Conn, Pot & Polish for OM1/2
Regular price
$29.91
Unit price
Description
Description

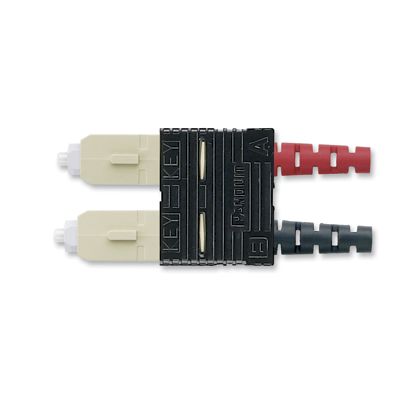

Panduit FSCDM | SC Dplx Conn, Pot & Polish for OM1/2
Our high-performance field polish SC fiber optic connector can be polished on-site, making it versatile and suitable for high-density, high-speed networks in telecom rooms, LANs, and data centers.
Panduit OptiCrimp Fiber Optic Connector, Field Polish, SC Duplex Connector, OM1/OM2 Multi-Mode Fiber, 900 um Tight Buffered Fiber Cable, Zirconia Ceramic Ferrule, Plastic, Black/Red
Panduit - FSCDM - Features
- Free floating housing
- Pre-assembled inner housing simplifies assembly
- Full length adhesive fill tube
- Non optical disconnect design
- Anaerobic adhesive field installation
- High temperature thermoplastic design
- Standard 2.5 mm ceramic ferrule provide the highest durability for repeated matings
Specifications
Specifications
Panduit - FSCDM - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FSCDM |
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Polish Type | Field Polish |
| Fiber Type | OM1 |
| Connection Type | SC |
| Application | Used for equipment cross-connects or interconnects in backbone, horizontal and work area applications. |
| Body Style | Duplex |
| Backbone Color | Electric Ivory |
| Fiber Diameter (µm) | 62.5 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 42 |
| Maximum Installation Temperature (°F) | 108 |
| Minimum Installation Temperature (°C) | 38 |
| Minimum Installation Temperature (°F) | 100 |
| Maximum Connector Insertion Loss (dB) | 0.1 |
| Minimum Connector Return Loss (dB) | 20 |
| Standards Met | TIA/EIA-604 FOCIS-3 compliant; exceeds TIA/EIA-568-B.3 requirements |
| Product Type | Fiber Optic Connector |
| UPC | 07498344422 |
Panduit - FSCDM - Environmental Information
| Moisture Sensitivity Level (MSL) | Not Applicable |
|---|---|
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
