Panduit FSCDMC6EI | Field Polish SC Fiber Optic Connector
Regular price
$43.65
Unit price
Description
Description

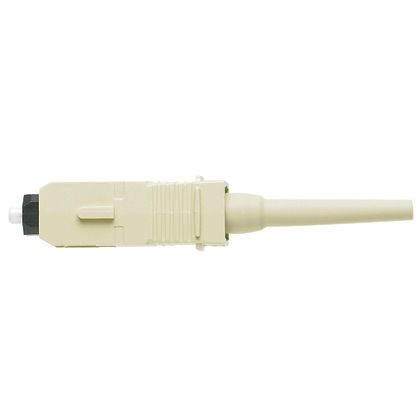

Panduit FSCDMC6EI | Field Polish SC Fiber Optic Connector
SC multimode duplex fiber optic connector for 900µm tight-buffered fiber installation.
Our high-performance field polish SC fiber optic connector can be polished on-site, making it versatile and suitable for high-density, high-speed networks in telecom rooms, LANs, and data centers.
Panduit - FSCDMC6EI - Features
- Without pulling eye
Specifications
Specifications
Panduit - FSCDMC6EI - Specifications
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
|---|---|
| Polish Type | Pre-Polished |
| Fiber Type | OM1 |
| Connection Type | SC |
| Sub Brand | OptiCam® |
| Application | Maintenance or emergency restoration of fiber networks and retrofit/initial install in both behind-the-wall (BTW) and in the permanent side of panelized interconnect and cross-connect. (SC multimode duplex fiber optic connector for 900m tight buffered cable installation) |
| Body Style | Duplex |
| Color | Electric Ivory |
| Boot Color | Electric Ivory |
| Backbone Color | Natural |
| Fiber Diameter (µm) | 62.5 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 42 |
| Maximum Installation Temperature (°F) | 108 |
| Minimum Installation Temperature (°C) | 38 |
| Minimum Installation Temperature (°F) | 100 |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 20 |
| Standards Met | TIA/EIA-604 FOCIS-3 compliant; exceeds TIA/EIA-568-D.3 requirements |
| UPC | 07498312712 |
Panduit - FSCDMC6EI - Package Information
| UPC | 07498312712 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.0032 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.0324 |
