Panduit FSCM2.05BL | Fiber Optic Connectors, Field Polish
Regular price
$15.16
Unit price
Description
Description
Panduit FSCM2.05BL | Fiber Optic Connectors, Field Polish

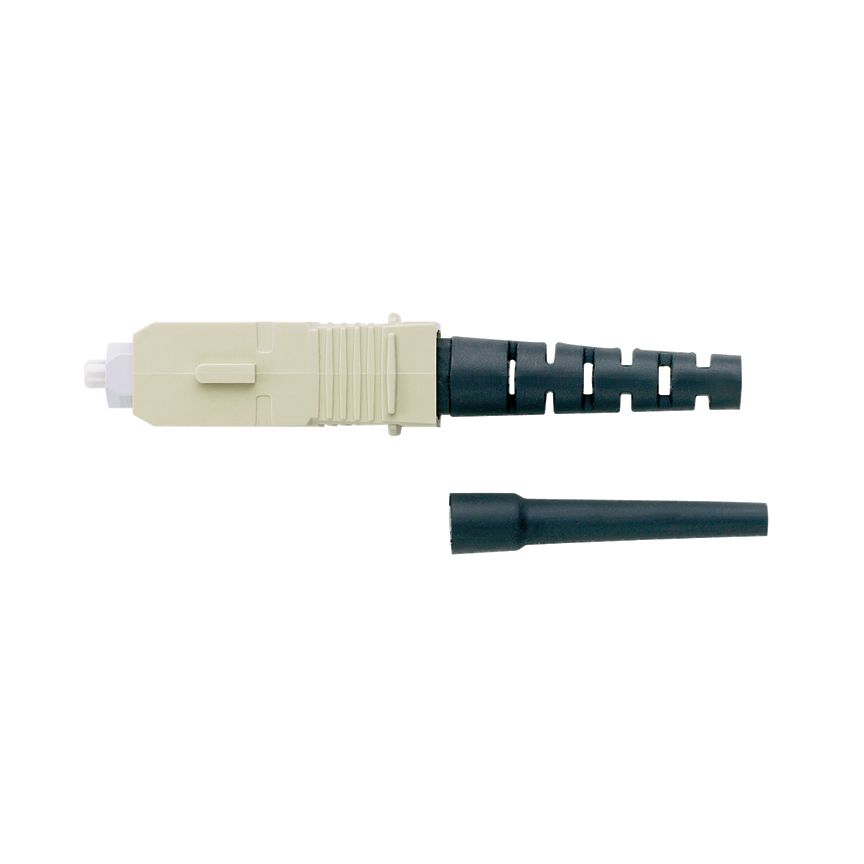

Field Polish SC Simplex Pot & Polish Style OM2 Connector, Electric Ivory Housing with 900um/3.0mm Black Boots
Panduit OptiCam Fiber Optic Connector, Field Polished, SC Simplex Connector, OM2/OM3 Multimode Fiber, 900 um Buffered Fiber Cable, Zirconia Ceramic Ferrule, Ceramic, Black
Panduit - FSCM2.05BL - Features
- Accepts all Panduit Mini-Com modules to mix and match media types in same faceplate
- Designed to efficiently support TIA-606-B standard labeling requirements by providing a clear way to identify the connections
- Complies with TIA-606-B labeling standard by providing labeling capabilities to the cable and the ports
- Provides design flexibility
- Allows faceplate to be adjusted to ensure proper alignment
- Insertion loss 0.10 dB average (multi-mode)
- Return loss >20 dB (multi-mode)
- Non-optical disconnect design maintains data transmission under tensile loads
- Free floating housing ensures complete latching even when inserted by the boot, beneficial in high density spacing applications
- Pre assembled inner housing simplifies assembly
Specifications
Specifications
Panduit - FSCM2.05BL - Specifications
| Connector Type | Sc |
|---|---|
| UNSPSC Code | 43223300 |
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Polish Type | Field Polish |
| Fiber Type | OM3/OM2 |
| Connection Type | SC |
| Sub Brand | SC Fiber Optic Connectors |
| Application | Used for equipment cross-connects or interconnects in backbone, horizontal and work area applications. |
| Body Style | Simplex |
| Color | Black |
| Boot Color | Black |
| Backbone Color | Black |
| Fiber Diameter (µm) | 50 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Maximum Installation Temperature (°F) | 108 |
| Maximum Installation Temperature (°C) | 42 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Installation Temperature (°C) | 38 |
| Minimum Installation Temperature (°F) | 100 |
| Maximum Connector Insertion Loss (dB) | 0.1 |
| Minimum Connector Return Loss (dB) | 20 |
| Standards Met | TIA/EIA-604 FOCIS-3 compliant; exceeds TIA/EIA-568-B.3 requirements |
| Product Type | Fiber Optic Connectors, Field Polish |
| UPC | 07498312725 |
Panduit - FSCM2.05BL - Environmental Information
| Moisture Sensitivity Level (MSL) | Not Applicable |
|---|---|
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
