Brand: Panduit
|
SKU:
546046
Panduit FSCMMBL | OptiCam Fiber Optic Connectors, Field Polish
Regular price
$32.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FSCMMBL | OptiCam Fiber Optic Connectors, Field Polish
Regular price
$32.74
Unit price
Description
Description
Panduit FSCMMBL | OptiCam Fiber Optic Connectors, Field Polish

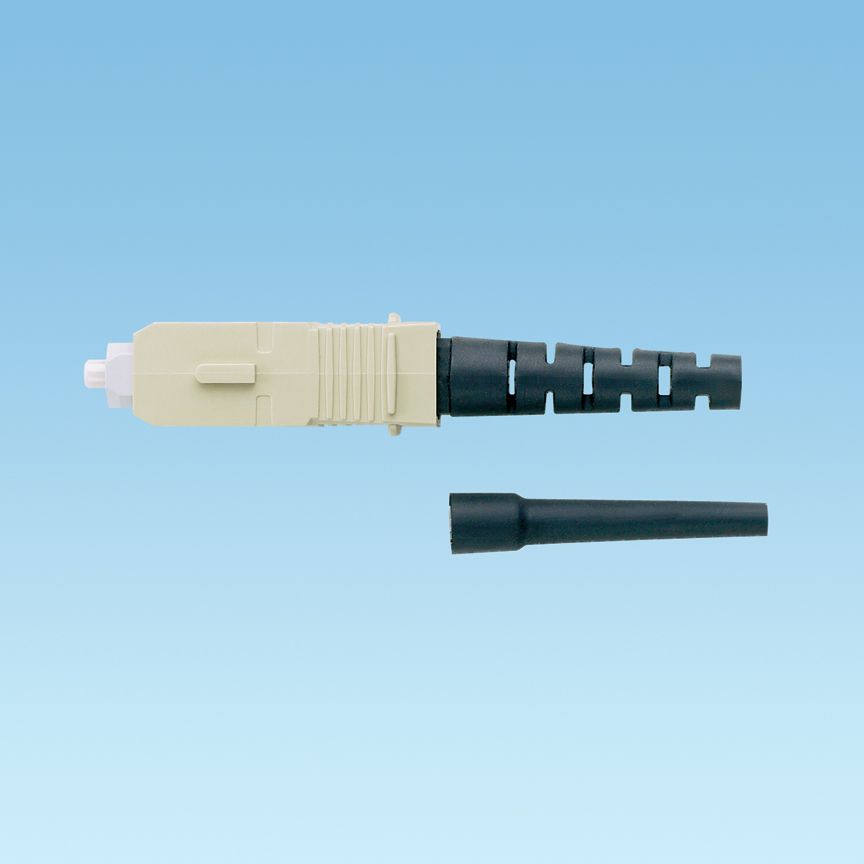

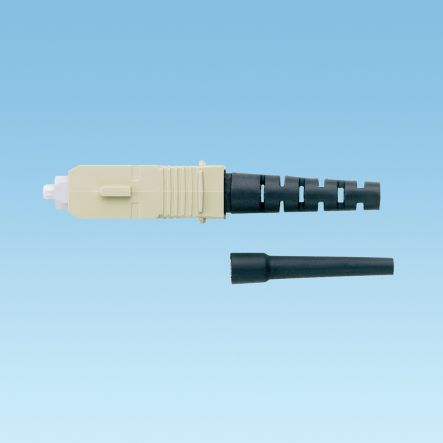

Pre-Polished SC Simplex Crimp Style OM1 Connector, Electric Ivory Housing with 900um/3.0mm Black Boots
Panduit FSCMMBL Sc Opti-crimp 62.5/125 Micron Multimode Simplex Fiber Optic Connector For 3.0mm Jacketed Cable Or 900 Micron Buffered Fiber Installation, Black
Specifications
Specifications
Panduit - FSCMMBL - Product Categories
- Fiber Optic Systems
- Fiber Optic Connectors
Panduit - FSCMMBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FSCMMBL |
| Item Description | OptiCam Fiber Optic Connectors, Field Polish |
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Polish Type | Field Polish |
| Fiber Type | OM2 |
| Connection Type | SC |
| Sub Brand | OptiCam |
| Application | Maintenance or emergency restoration of fiber networks and retrofit/initial install in both behind-the-wall (BTW) and in the permanent side of panelized interconnect and cross-connect. |
| Body Style | Simplex |
| Color | Black |
| Boot Color | Black |
| Backbone Color | Electric Ivory |
| Fiber Diameter (µm) | 62.5 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Maximum Installation Temperature (°F) | 108 |
| Maximum Installation Temperature (°C) | 42 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Installation Temperature (°C) | 38 |
| Minimum Installation Temperature (°F) | 100 |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 20 |
| Standards Met | TIA/EIA-604 FOCIS-3 compliant; exceeds TIA/EIA-568-D.3 requirements |
| Product Type | Fiber Optic Connectors, Field Polish |
| Connector Type | SC |
| Fiber Type | OM1 MULTIMODE |
| UNSPSC Code | 43223300 |
Panduit - FSCMMBL - Package Information
| UPC | 07498383254 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0037 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.0367 |
