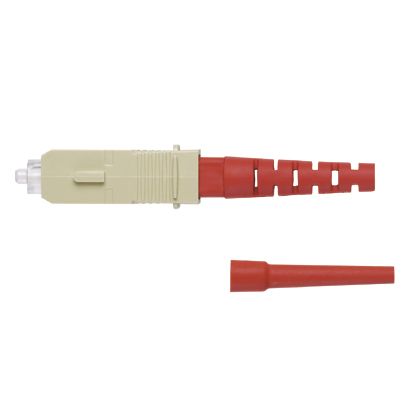

Panduit FSCMMRD | OptiCam
Our high-performance field polish SC fiber optic connector can be polished on-site, making it versatile and suitable for high-density, high-speed networks in telecom rooms, LANs, and data centers.
Panduit Fiber Optic Connector, Pre-Polished, SC Simplex Connector, 62.5/125 um OM1 Multi-Mode Fiber, 3 mm Jacketed Cable, Zirconia Ceramic Ferrule, Polyetherimide, Electric Ivory
Panduit - FSCMMRD - Features
- Pre-polished mechanical crimp termination eliminates polishing and adhesive, reducing installation time by 50% over field polish SC connectors
- Non-optical disconnect design maintains data transmission under tensile loads (jacketed cable only), mechanical crimp cable retention consistently provides higher than industry standard cable retention
- Factory pre-polished fiber endface eliminates time consuming field polishing to reduce installation costs, labor, scrap and the number of tools required
Specifications
Specifications
Panduit - FSCMMRD - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FSCMMRD |
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Polish Type | Pre-Polished |
| Fiber Type | OM1 |
| Connection Type | SC |
| Sub Brand | OptiCam |
| Application | Maintenance or emergency restoration of fiber networks and retrofit/initial install in both behind-the-wall (BTW) and in the permanent side of panelized interconnect and cross-connect. |
| Body Style | Simplex |
| Color | Red |
| Backbone Color | Electric Ivory |
| Fiber Diameter (µm) | 62.5 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 42 |
| Maximum Installation Temperature (°F) | 108 |
| Minimum Installation Temperature (°C) | 38 |
| Minimum Installation Temperature (°F) | 100 |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 20 |
| Standards Met | TIA/EIA-604 FOCIS-3 compliant; exceeds TIA/EIA-568-D.3 requirements |
| UPC | 07498383253 |
Panduit - FSCMMRD - Environmental Information
| Moisture Sensitivity Level (MSL) | Not Applicable |
|---|---|
| ECCN | OBSOLETE |
