Panduit FSCMRD | SC Splx Conn, Pot & Polish for OM1
Regular price
$15.16
Unit price
Brand: Panduit
|
SKU:
546394
Regular price
$15.16
Unit price
Description
Description

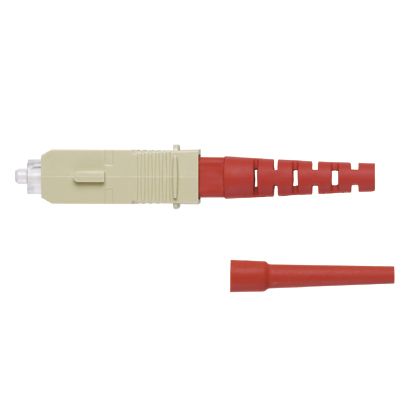

Panduit FSCMRD | SC Splx Conn, Pot & Polish for OM1
Our high-performance field polish SC fiber optic connector can be polished on-site, making it versatile and suitable for high-density, high-speed networks in telecom rooms, LANs, and data centers.
Field Polish SC Simplex Pot & Polish Style OM1 Connector, Electric Ivory Housing with 900um/3.0mm Red Boots
Panduit Fiber Optic Connector, Field Polish, SC Simplex Connector, Multi-Mode OM1 Fiber, 900 um Tight Buffered Fiber Cable, Zirconia Ceramic Ferrule, Polyetherimide, Red
Panduit - FSCMRD - Features
- Factory pre-polished fiber endface eliminates time consuming field polishing
- Pre-assembled inner housing simplifies assembly
- Full length adhesive fill tube
- Non optical disconnect design
- Anaerobic adhesive field installation
- High temperature thermoplastic design
- Standard 2.5 mm ceramic ferrule provide the highest durability for repeated matings
- Free floating housing
Specifications
Specifications
Panduit - FSCMRD - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FSCMRD |
| Connector Type | Sc |
| Fiber Type | Om1/Om2/Om3/Om4 Multimode |
| UNSPSC Code | 43223300 |
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Polish Type | Field Polish |
| Fiber Type | OM1 |
| Connection Type | SC |
| Application | Used for equipment cross-connects or interconnects in backbone, horizontal and work area applications. |
| Body Style | Simplex |
| Color | Red |
| Backbone Color | Electric Ivory |
| Fiber Diameter (µm) | 62.5 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 42 |
| Maximum Installation Temperature (°F) | 108 |
| Minimum Installation Temperature (°C) | 38 |
| Minimum Installation Temperature (°F) | 100 |
| Maximum Connector Insertion Loss (dB) | 0.1 |
| Minimum Connector Return Loss (dB) | 20 |
| Standards Met | TIA/EIA-604 FOCIS-3 compliant; exceeds TIA/EIA-568-B.3 requirements |
| Product Type | Fiber Optic Connector |
| UPC | 07498383266 |
Panduit - FSCMRD - Environmental Information
| Moisture Sensitivity Level (MSL) | Not Applicable |
|---|---|
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
