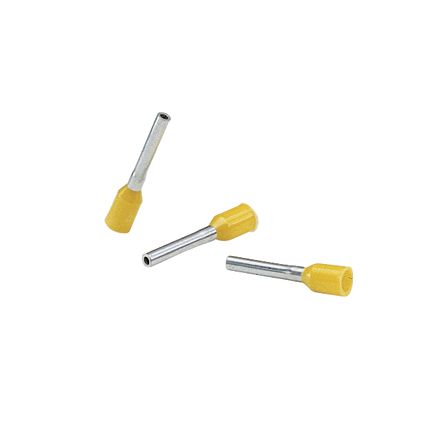

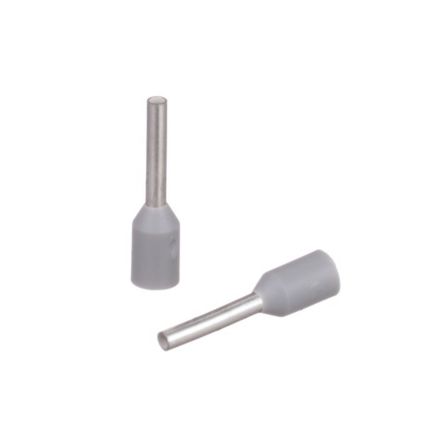

Panduit FSD72-6-D | Pan-Term FSD72-6-D Covered single wire ferrules
Regular price
$1.46
Unit price
Brand: Panduit
|
SKU:
898560-EA
Regular price
$1.46
Unit price
Description
Description
Panduit FSD72-6-D | Pan-Term FSD72-6-D Covered single wire ferrules
Polypropylene insulated ferrules single wire gray DIN end sleeve, 26 AWG (.14mm), .24(6.0mm) pin length.
Panduit FSD72-6-D - FERRULE - VINYL INSULATED FERRULE
Specifications
Specifications
Panduit - FSD72-6-D - Product Categories
- Wire Termination
- Ferrules
Panduit - FSD72-6-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FSD72-6-D |
| Item Description | Pan-Term FSD72-6-D Covered single wire ferrules |
| Note | Not UL Listed |
| Ferrule Type | Single Wire Standard |
| Cover Material | Polypropylene |
| Copper Conductor Size (AWG) | #26 |
| Maximum Copper Conductor Size (AWG) | #26 |
| Maximum Metric Conductor Size (mm²) | 0.14 |
| Minimum Copper Conductor Size (AWG) | #26 |
| Wire Strip Length (In.) | 0.37 |
| Wire Strip Length (mm) | 9.5 |
| Pin Length (In.) | 0.24 |
| Pin Length (mm) | 6 |
| Inside Diameter (In.) | 0.03 |
| Inside Diameter (mm) | 0.8 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.07 |
| Maximum Wire Insulation Diameter (mm) | 2 |
| Overall Length (In.) | 0.41 |
| Overall Length (mm) | 10.5 |
| Product Type | Covered Single Wire Ferrules |
| Standards Met | DIN 46228 Part 4, CSA C22.2 No. 291-14 |
| Finish/Coating | Tin-Plated |
| For Use With | CT-1002, CT-1123, CT-2500/L (CT-2523CH) |
| Packaging Type | Bag |
| Base Material | Copper |
| Color Code | Gray |
| Sub Brand | Pan-Term |
| Part Features | Polypropylene insulation housing conforms to DIN color requirements Meets DIN, UL and CSA standards for single wire containment Funnel entry for faster insertion and lower installed cost Designed with a seamless barrel to contain loose wire strands for superior terminations Eases insertion of wire into terminal block Suitable for limited space panel applications Multiple pin lengths available for a variety of terminal blocks |
Panduit - FSD72-6-D - Package Information
| UPC | 07498376393 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.0896 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
