Brand: Panduit
|
SKU:
325737-EA

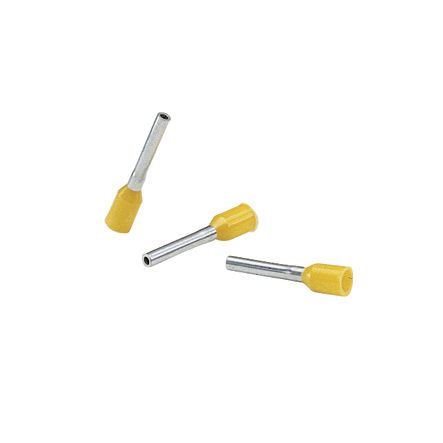

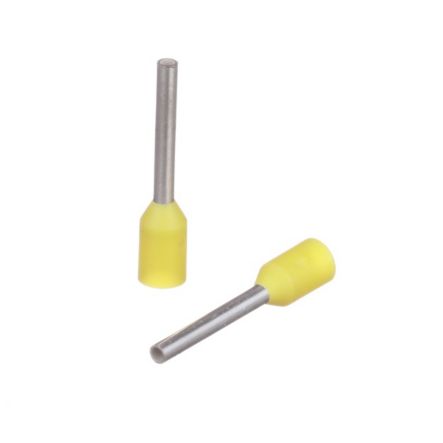

Panduit FSD73-8-D | Pan-Term FSD73-8-D Single wire ferrule, Yellow, 8mm Pin L, PK500
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FSD73-8-D | Pan-Term FSD73-8-D Single wire ferrule, Yellow,...
Regular price
$1.46
Unit price
Description
Description
Panduit FSD73-8-D | Pan-Term FSD73-8-D Single wire ferrule, Yellow, 8mm Pin L, PK500
Panduit FSD73-8-D Covered Single Wire Ferrule
Panduit FSD73-8-D - FERRULE - 24AWG VINYL INSULATED FERRULE
Specifications
Specifications
Panduit - FSD73-8-D - Product Categories
- Wire Termination
- Ferrules
Panduit - FSD73-8-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FSD73-8-D |
| Item Description | Pan-Term FSD73-8-D Single wire ferrule, Yellow, 8mm Pin L, PK500 |
| Note | Not UL Listed |
| Ferrule Type | Single Wire Standard |
| Cover Material | Polypropylene |
| Copper Conductor Size (AWG) | #24 |
| Maximum Copper Conductor Size (AWG) | #24 |
| Maximum Metric Conductor Size (mm²) | 0.25 |
| Minimum Copper Conductor Size (AWG) | #24 |
| Minimum Metric Conductor Size (mm²) | 0.25 |
| Wire Strip Length (In.) | 15/32 |
| Wire Strip Length (mm) | 11.9 |
| Pin Length (In.) | 0.31 |
| Pin Length (mm) | 8 |
| Inside Diameter (In.) | 0.03 |
| Inside Diameter (mm) | 0.8 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Operating Temperature (°C) | -54 |
| Minimum Operating Temperature (°F) | -60 |
| Maximum Wire Insulation Diameter (In.) | 0.07 |
| Maximum Wire Insulation Diameter (mm) | 2 |
| Overall Length (In.) | 0.49 |
| Overall Length (mm) | 12.5 |
| Product Type | Covered Single Wire Ferrules |
| Standards Met | DIN 46228 Part 4, CSA C22.2 No. 291-14 |
| Finish/Coating | Tin-Plated |
| For Use With | CT-1002, CT-1123, CT-2500/L (CT-2523CH) |
| Packaging Type | Bag |
| Base Material | Copper |
| Color Code | Yellow |
| Sub Brand | Pan-Term |
| Part Features | Polypropylene insulation housing conforms to DIN color requirements Meets DIN, UL and CSA standards for single wire containment Funnel entry for faster insertion and lower installed cost Designed with a seamless barrel to contain loose wire strands for superior terminations Eases insertion of wire into terminal block Suitable for limited space panel applications Multiple pin lengths available for a variety of terminal blocks |
Panduit - FSD73-8-D - Package Information
| UPC | 07498376396 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.0896 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - FSD73-8-D - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
