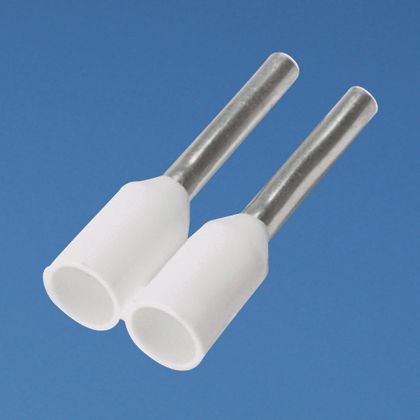

Panduit FSD75-8-3K10 | Reel Smart FSD75-8-3K10 covered single wire Ferrule on reel
Regular price
$302.17
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FSD75-8-3K10 | Reel Smart FSD75-8-3K10 covered single wire ...
Regular price
$302.17
Unit price
Description
Description
Panduit FSD75-8-3K10 | Reel Smart FSD75-8-3K10 covered single wire Ferrule on reel
Insulated ferrules, single wire white DIN end sleeve on reel, 22 - 20AWG (0.50mm2), 8mm Pin Length.
Specifications
Specifications
Panduit - FSD75-8-3K10 - Product Categories
- Wire Termination
- Ferrules
Panduit - FSD75-8-3K10 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FSD75-8-3K10 |
| Item Description | Reel Smart FSD75-8-3K10 covered single wire Ferrule on reel |
| Ferrule Type | Single Wire Standard |
| Cover Material | Polypropylene |
| Copper Conductor Size (AWG) | #20 |
| Maximum Copper Conductor Size (AWG) | #20 |
| Maximum Metric Conductor Size (mm²) | 0.5 |
| Minimum Copper Conductor Size (AWG) | #20 |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL94-HB |
| Wire Strip Length (In.) | 0.39 |
| Wire Strip Length (mm) | 10 |
| Pin Length (In.) | 0.31 |
| Pin Length (mm) | 8 |
| Inside Diameter (In.) | 0.04 |
| Inside Diameter (mm) | 1.1 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.09 |
| Maximum Wire Insulation Diameter (mm) | 2.4 |
| Outer Diameter (In.) | 0.05 |
| Outer Diameter (mm) | 1.4 |
| Overall Length (In.) | 0.57 |
| Overall Length (mm) | 14.5 |
| Product Type | Covered Single Wire Ferrule |
| Standards Met | DIN 46228 Part 4, CSA C22.2 No. 291-14, cULus E472545 |
| Finish/Coating | Tin-Plated |
| For Use With | CP-881, APM-MRSP1516JMD |
| Packaging Type | Reel |
| Base Material | Copper |
| Color Code | White |
| Sub Brand | Reel Smart |
| Part Features | Polypropylene insulation housing available in DIN standard colors in reels to 500 to 3000 Designed specifically for use with the Ferrule Applicator (SCA-712022002) for high volume applications Continuously molded design provides consistent placement of ferrules in applicator to ensure fast, reliable terminations |
Brand Name - FSD75-8-3K10 - Package Information
| UPC | 07498390982 |
|---|---|
| Standard Package Quantity | 3000 |
| Standard Package Volume (cf) | 0.0579 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
