Panduit FSD75-8-3K10 | Single wire ferrules on reel (DIN color code...
Description
Description
Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.

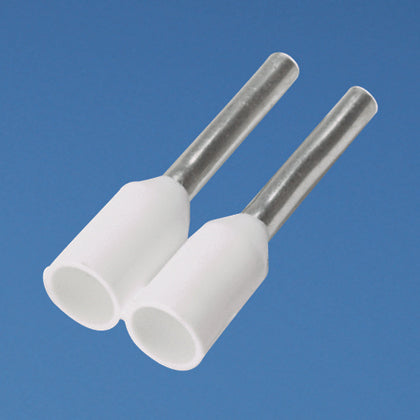

Panduit Reel Smart Ferrule, Type FSD Sleeve Single Insulated, Stranded Conductor, 20 AWG Conductor, 0.57 in Length, Seamless Tubular Barrel, 0.04 in ID x 0.31 in L Barrel, 13/32 in L Wire Strip, 0.09 in Dia Maximum Wire Insulation, Polypropylene Insulation, 221 deg F, Copper, Tin Plated, White
Features + Benefits
- Designed with a seamless barrel to contain loose wire strands for superior terminations
- Eases insertion of wire into terminal block
- Meets DIN, UL and CSA standards for wire containment
Panduit FSD75-8-3K10 Key Specs
| Ferrule Type | Single Wire Standard |
| Copper Conductor Size (AWG) | 20 |
| Maximum Copper Conductor Size (AWG) | 20 |
| Maximum Metric Conductor Size (mm²) | 0.5 |
| Minimum Copper Conductor Size (kcmil) | 20 |
| Minimum Metric Conductor Size (mm²) | 2.4 |
| Class K Copper Flex Conductor Size (AWG) | 20 |
| Class M Copper Flex Conductor Size (AWG) | 20 |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL 94 HB |
| Wire Strip Length (In.) | 0.39 |
| Wire Strip Length (mm) | 10 |
| Pin Length (In.) | 0.31 |
| Pin Length (mm) | 8 |
Panduit FSD75-8-3K10 Data Sheets
| Catalog Cut Sheets | CD-2001 & KC22 Crimping Dies | Download and View |
