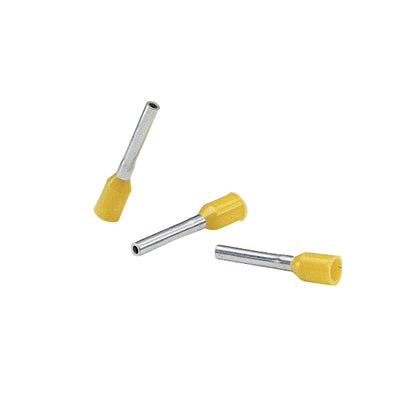

Panduit FSD75-8-D | Pan-Term Covered Single Wire Ferrules

Simplifies reliable connections with our single wire ferrule with end sleeve for stranded wires in terminal blocks, meeting industry standards for various applications.

The FSD75-8-D Pan-Term Ferrule is a covered, single-wire ferrule end sleeve. Designed with a seamless barrel to contain loose wire strands for superior terminations. Plastic covering flare allows for faster and easier wire insertion to lower installed cost. Eases insertion of wire into the terminal block and is suitable for limited space panel applications.

Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.

Panduit Pan-Term Ferrule, Type FSD DIN End Sleeve Single Insulated, Stranded Conductor, 20 AWG Conductor, 0.53 in Length, Seamless Barrel, 0.04 in ID x 0.31 in L Barrel, 15/32 in L Wire Strip, 0.09 in Dia Maximum Wire Insulation, Polypropylene Insulation, 221 deg F, Copper, Tin Plated, White
