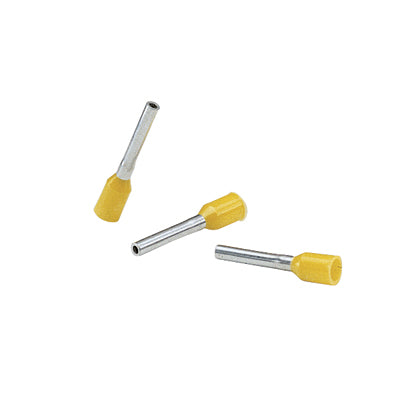

Panduit FSD76-6-D | Insulated single wire ferrules (DIN or French c...
Description
Description
Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.
Panduit Pan-Term Ferrule, Type FSD DIN End Sleeve Single Insulated, Stranded Conductor, 18 AWG Conductor, 0.47 in Length, Seamless Barrel, 0.05 in ID x 0.24 in L Barrel, 3/8 in L Wire Strip, 0.11 in Dia Maximum Wire Insulation, Polypropylene Insulation, 221 deg F, Copper, Tin Plated, Gray
- Polypropylene insulation housing
- Meets DIN standards for twin wire containment
- Funnel entry for faster insertion and lower installed cost
- Designed with a seamless barrel to contain loose wire strands for superior terminations
Panduit Panduit FSD76-6-D | Insulated single wire ferrules (DIN or French color code) | UPC - 07498376247 Key Specs
| Insulation Material | Polypropylene |
| Flammability Rating | UL 94 HB |
| Wire Strip Length (In.) | 0.37 |
| Wire Strip Length (mm) | 9.5 |
| Pin Length (In.) | 0.24 |
| Pin Length (mm) | 6 |
| Insulation Type | Polypropylene |
| Insulation Diameter (In.) | 0.11 |
| Insulation Diameter (mm) | 2.8 |
| Inside Diameter (In.) | 0.05 |
| Inside Diameter (mm) | 1.3 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.11 |
| Maximum Wire Insulation Diameter (mm) | 2.8 |
| Overall Length (In.) | 0.49 |
| Overall Length (mm) | 12 |
Panduit Panduit FSD76-6-D | Insulated single wire ferrules (DIN or French color code) | UPC - 07498376247 Environmental Information
| Panduit's RoHS Statement | Download and View |
