Panduit FSD77-8-DSL2 | Insulated single wire ferrules (DIN or Frenc...
Description
Description
Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.

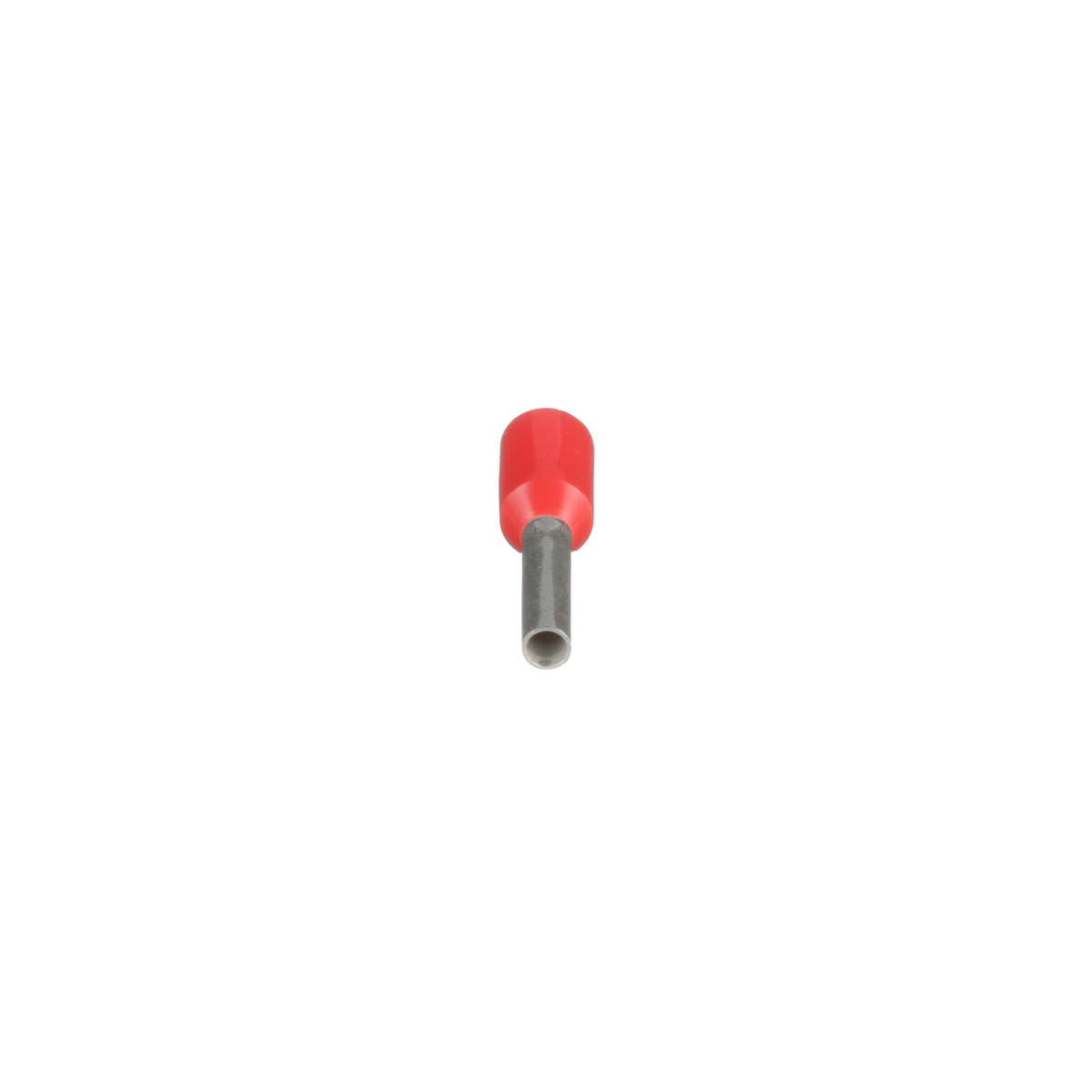

Panduit Reel Smart Ferrule, Type FSD DIN End Sleeve On-Strip Single Insulated, Stranded Conductor, 18 AWG Conductor, 0.6 in Length, Seamless Barrel, 0.07 in ID x 0.31 in L Barrel, 13/32 in L Wire Strip, 0.12 in Dia Maximum Wire Insulation, Polypropylene Insulation, 221 deg F, Copper, Tin Plated, Red
Features + Benefits
- Polypropylene insulation housing
- Meets DIN standards for twin wire containment
- Funnel entry for faster insertion and lower installed cost
- Designed with a seamless barrel to contain loose wire strands for superior terminations
- Eases insertion of wire into terminal block
Panduit FSD77-8-DSL2 Key Specs
| Insulation Material | Polypropylene |
| Flammability Rating | UL 94 HB |
| Wire Strip Length (In.) | 0.39 |
| Wire Strip Length (mm) | 10 |
| Pin Length (In.) | 0.31 |
| Pin Length (mm) | 8 |
| Insulation Type | Polypropylene |
| Insulation Diameter (In.) | 0.12 |
| Insulation Diameter (mm) | 3 |
| Inside Diameter (In.) | 0.06 |
| Inside Diameter (mm) | 1.5 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.12 |
| Maximum Wire Insulation Diameter (mm) | 3 |
| Overall Length (In.) | 0.57 |
| Overall Length (mm) | 14.5 |
Panduit FSD77-8-DSL2 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheets - C025X025KBT Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - C10262 | Download and View |
| Technical References | Polyester Technical Data Sheet | Download and View |
