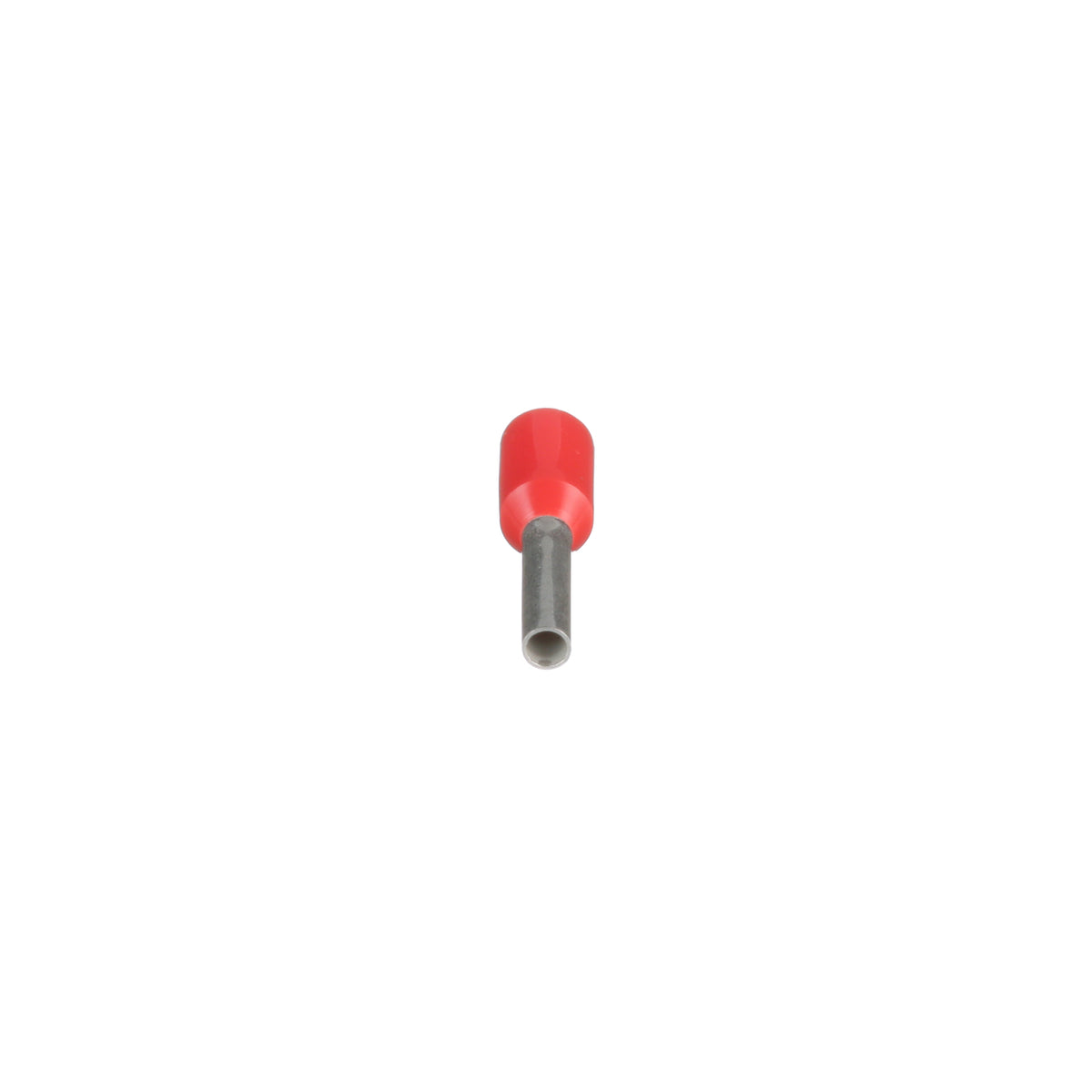

Panduit FSD77-8-K | Single wire ferrule | UPC - 07498333343
Description
Description
Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.
Panduit Ferrule, Type FSD Single Insulated, Stranded Conductor, 1 sq-mm Conductor, 0.57 in Length, Seamless Tubular Barrel, 0.06 in ID x 0.31 in L Barrel, Specifications: 0.12 in Dia Maximum Wire Insulation, 0.39 in Mounting Hole Size, 13/32 in L Wire Strip, Polypropylene Insulation, 221 deg F, Copper, Tin Plated, Red
- Designed with a seamless barrel to contain loose wire strands for superior terminations
- Eases insertion of wire into terminal block
- Meets DIN, UL and CSA standards for wire containment
Panduit Panduit FSD77-8-K | Single wire ferrule | UPC - 07498333343 Key Specs
| Ferrule Type | Single Wire Standard |
| Cover Material | Polypropylene |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Flammability Rating | UL94-HB |
| Wire Strip Length (In.) | 13/32 |
| Wire Strip Length (mm) | 10 |
| Pin Length (In.) | 0.31 |
| Pin Length (mm) | 8 |
| Inside Diameter (In.) | 0.06 |
| Inside Diameter (mm) | 1.5 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Operating Temperature (°C) | -54 |
| Minimum Operating Temperature (°F) | -60 |
| Maximum Wire Insulation Diameter (In.) | 0.12 |
| Maximum Wire Insulation Diameter (mm) | 3 |
| Overall Length (In.) | 0.57 |
| Overall Length (mm) | 14.5 |
| Product Type | Single wire ferrule |
Panduit Panduit FSD77-8-K | Single wire ferrule | UPC - 07498333343 Environmental Information
| Panduit's RoHS Statement | Download and View |
