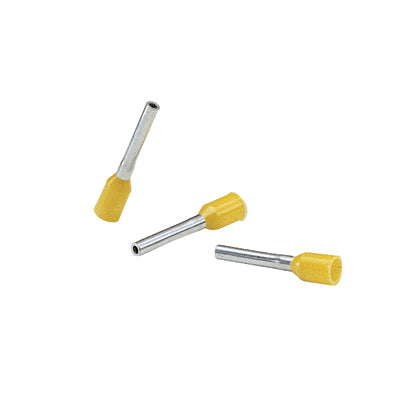

Panduit FSD78-6-D | Pan-Term Covered Single Wire Ferrules
Description
Description
Simplifies reliable connections with our single wire ferrule with end sleeve for stranded wires in terminal blocks, meeting industry standards for various applications.
Polypropylene insulated ferrules - single wire DIN end sleeve.
Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.

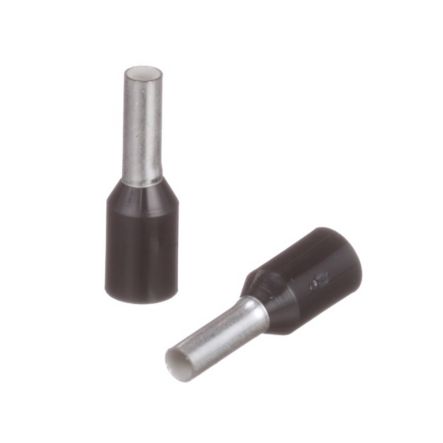

Panduit Pan-Term Ferrule, Type FSD DIN End Sleeve Single Insulated, Stranded Conductor, 16 AWG Conductor, 0.49 in Length, Seamless Barrel, 0.07 in ID x 0.24 in L Barrel, 3/8 in L Wire Strip, 0.12 in Dia Maximum Wire Insulation, Polypropylene Insulation, 221 deg F, Copper, Tin Plated, Black
Panduit - FSD78-6-D - Features
- Polypropylene insulation housing
- Meets DIN standards for twin wire containment
- Funnel entry for faster insertion and lower installed cost
- Designed with a seamless barrel to contain loose wire strands for superior terminations
- Eases insertion of wire into terminal block
- Polypropylene insulation housing conforms to DIN color requirements
- Meets DIN standards for single wire containment
- Funnel entry for faster insertion and lower installed cost
- Designed with a seamless barrel to contain loose wire strands for superior terminations
- Eases insertion of wire into terminal block
- Suitable for limited space panel applications
- Multiple pin lengths available for a variety of terminal blocks
Specifications
Specifications
Panduit - FSD78-6-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FSD78-6-D |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Ferrule Type | Single Wire Standard |
| Cover Material | Polypropylene |
| Copper Conductor Size (AWG) | 16 |
| Maximum Copper Conductor Size (AWG) | 16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| UL Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL94-HB |
| Wire Strip Length (In.) | 3/8 |
| Wire Strip Length (mm) | 9.5 |
| Pin Length (In.) | 0.24 |
| Pin Length (mm) | 6 |
| Inside Diameter (In.) | 0.07 |
| Inside Diameter (mm) | 1.8 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.12 |
| Maximum Wire Insulation Diameter (mm) | 3 |
| Overall Length (In.) | 0.49 |
| Overall Length (mm) | 12.5 |
| UPC | 07498376399 |
