Brand: Panduit
|
SKU:
PAN-FSD78-8-DSL0

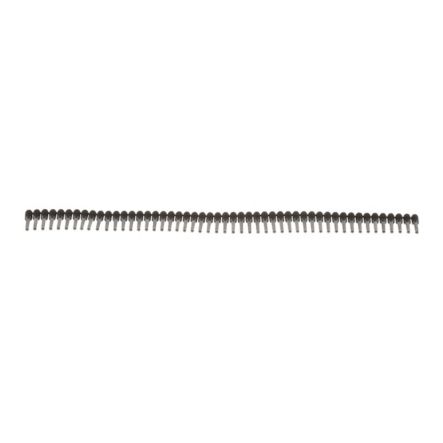

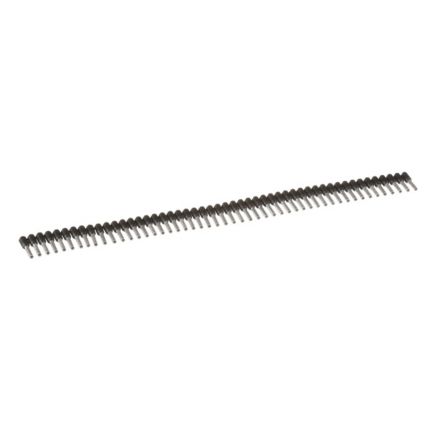

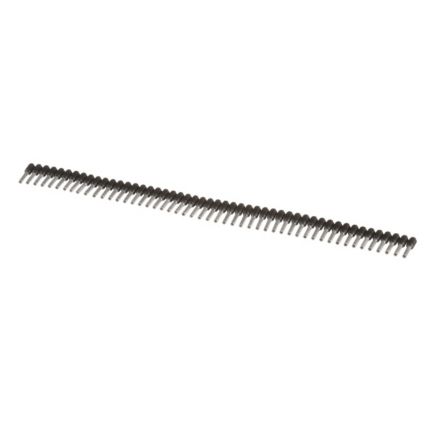

Panduit FSD78-8-DSL0 | Pan-Term Fsd78-8-Dsl0 Single Wire Ferrule, Stripblack, 8Mm Pin L, Pk500
Regular price
$57.44
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FSD78-8-DSL0 | Pan-Term Fsd78-8-Dsl0 Single Wire Ferrule, S...
Regular price
$57.44
Unit price
Brand: Panduit
|
SKU:
PAN-FSD78-8-DSL0
Regular price
$57.44
Unit price
Shipping calculated at checkout.
Description
Description
Panduit FSD78-8-DSL0 | Pan-Term Fsd78-8-Dsl0 Single Wire Ferrule, Stripblack, 8Mm Pin L, Pk500
Panduit FSD78-8-DSL0 Covered Single Wire Ferrule
Panduit - FSD78-8-DSL0 - Features
- Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.
- Panduit Reel Smart Ferrule, Type FSD DIN End Sleeve On-Strip Single Insulated, Stranded Conductor, 16 AWG Conductor, 0.6 in Length, Seamless Barrel, 0.09 in ID x 0.31 in L Barrel, 13/32 in L Wire Strip, 0.13 in Dia Maximum Wire Insulation, Polypropylene Insulation, 221 deg F, Copper, Tin Plated, Black
- Polypropylene insulation housing
- Meets DIN standards for twin wire containment
- Funnel entry for faster insertion and lower installed cost
- Designed with a seamless barrel to contain loose wire strands for superior terminations
- Eases insertion of wire into terminal block
Specifications
Specifications
Panduit - FSD78-8-DSL0 - Product Categories
- Wire Termination
- Ferrules
Panduit - FSD78-8-DSL0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FSD78-8-DSL0 |
| Item Description | Pan-Term Fsd78-8-Dsl0 Single Wire Ferrule, Stripblack, 8Mm Pin L, Pk500 |
| Ferrule Type | Single Wire Standard |
| Cover Material | Polypropylene |
| Copper Conductor Size (AWG) | #16 |
| Maximum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL94-HB |
| Wire Strip Length (In.) | 13/32 |
| Wire Strip Length (mm) | 10 |
| Pin Length (In.) | 0.31 |
| Pin Length (mm) | 8 |
| Inside Diameter (In.) | 0.07 |
| Inside Diameter (mm) | 1.8 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Operating Temperature (°C) | -54 |
| Minimum Operating Temperature (°F) | -60 |
| Maximum Wire Insulation Diameter (In.) | 0.13 |
| Maximum Wire Insulation Diameter (mm) | 3.2 |
| Outer Diameter (In.) | 0.08 |
| Outer Diameter (mm) | 2.1 |
| Overall Length (In.) | 0.57 |
| Overall Length (mm) | 14.5 |
| Product Type | Covered Single Wire Ferrule on Strip |
| Standards Met | DIN 46228, CSA C22.2 No. 291-14, UL 486F |
| Finish/Coating | Tin-Plated |
| For Use With | CT-1000 |
| Packaging Type | Ferrules on a Strip |
| Base Material | Copper |
| Color Code | Black |
| Sub Brand | Pan-Term |
| Part Features | Polypropylene insulation housing available in DIN standard colors in strips of 50 Continuously molded design provides consistent placement of ferrules in tool to ensure fast, reliable terminations Meets DIN, UL and CSA standards for single wire containment -Designed with a seamless barrel to contain loose wire strands for superior terminations Eases insertion of wire into terminal block Designed for use with the Semiautomatic Ferrule Crimping Tool CT-1000 for medium volume applications |
| MPN: | FSD78-8-DSL0 |
| Barrel Size: | 0.09 in ID x 0.31 in L |
| Barrel Type: | Seamless |
| Color: | Black |
| Conductor Size: | 16 AWG |
| Conductor Type: | Stranded |
| Finish: | Tin Plated |
| Length: | 0.6 in |
| Material: | Copper |
| Series: | FSD-DSL |
| Specifications: | 13/32 in L Wire Strip, 0.13 in Dia Maximum Wire Insulation, Polypropylene Insulation |
| Temperature Rating: | 221 deg F |
| Type: | Type FSD DIN End Sleeve On-Strip Single Insulated |
Panduit - FSD78-8-DSL0 - Package Information
| UPC | 07498300992 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.0091 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - FSD78-8-DSL0 - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
