Panduit FSD78-8-K | Reel Smart Single wire ferrule, Black, 16 AWG, ...
Description
Description
Simplifies reliable connections with our single wire ferrule with end sleeve for stranded wires in terminal blocks, meeting industry standards for various applications.

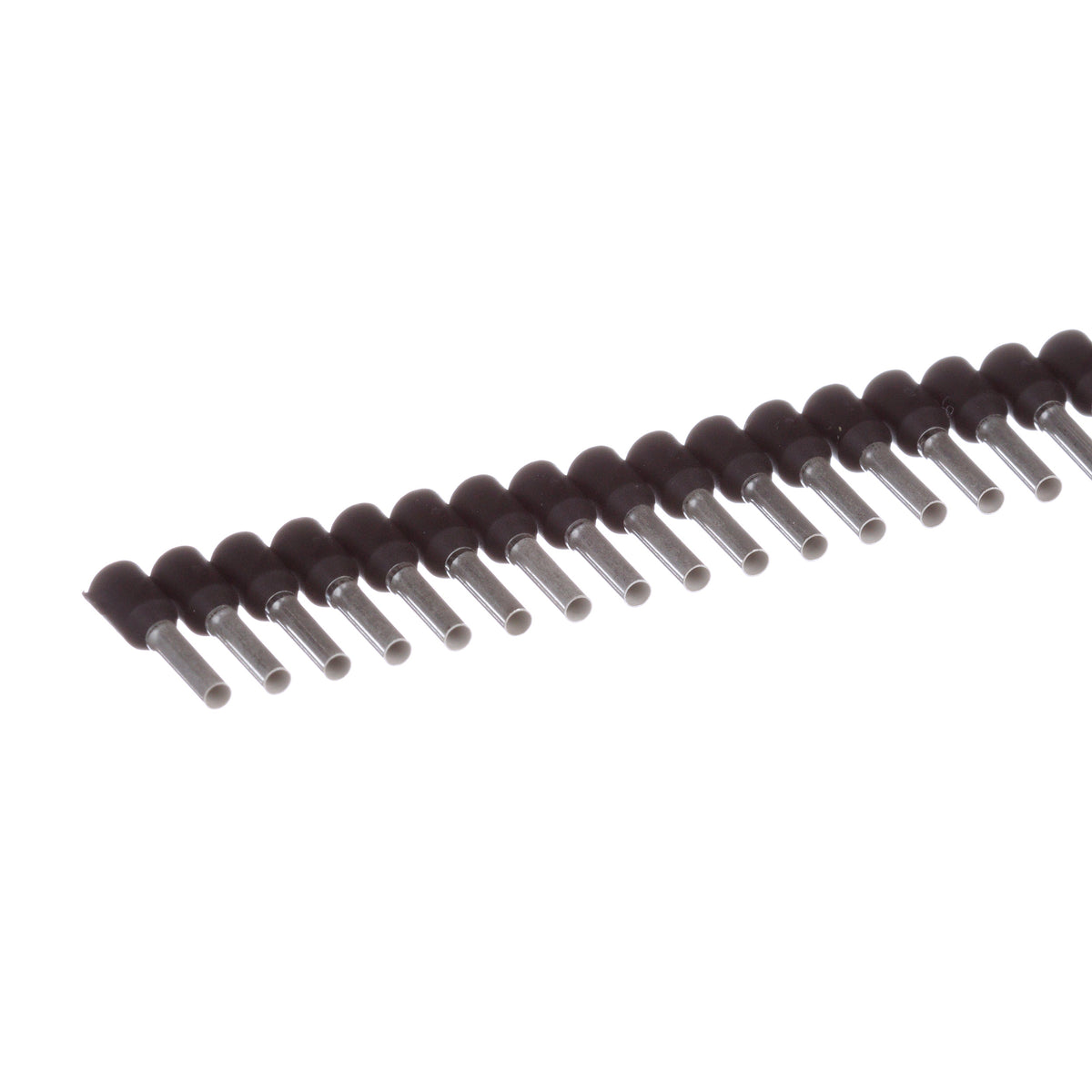

Insulated ferrules, single wire black DIN end sleeve on mini-reel, 16 AWG (1.5mm2), 0.31 (8.0mm) pin length.
Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.
Panduit Reel Smart Ferrule, Type FSD Sleeve Single Insulated, Stranded Conductor, 16 AWG Conductor, 0.57 in Length, Seamless Tubular Barrel, 0.07 in ID x 0.31 in L Barrel, 13/32 in L Wire Strip, 0.13 in Dia Maximum Wire Insulation, Polypropylene Insulation, 221 deg F, Copper, Tin Plated, Black
Panduit - FSD78-8-K - Features
- Designed with a seamless barrel to contain loose wire strands for superior terminations
- Eases insertion of wire into terminal block
- Meets DIN, UL and CSA standards for wire containment
Specifications
Specifications
Panduit - FSD78-8-K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FSD78-8-K |
| UNSPSC Code | 39121400 |
| Ferrule Type | Single Wire Standard |
| Cover Material | Polypropylene |
| Copper Conductor Size (AWG) | 16 |
| Maximum Copper Conductor Size (AWG) | 16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL94-HB |
| Wire Strip Length (In.) | 0.39 |
| Wire Strip Length (mm) | 10 |
| Pin Length (In.) | 0.31 |
| Pin Length (mm) | 8 |
| Inside Diameter (In.) | 0.07 |
| Inside Diameter (mm) | 1.8 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.13 |
| Maximum Wire Insulation Diameter (mm) | 3.2 |
| Outer Diameter (In.) | 0.08 |
| Outer Diameter (mm) | 2.1 |
| Overall Length (In.) | 0.57 |
| UPC | 07498333344 |
