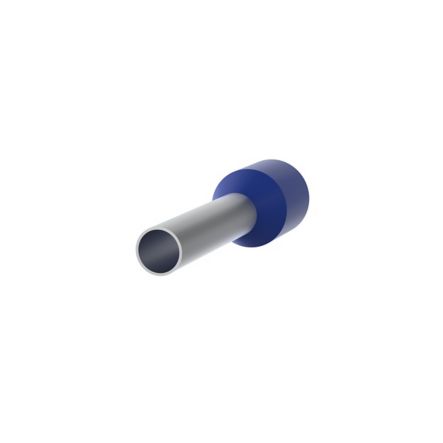

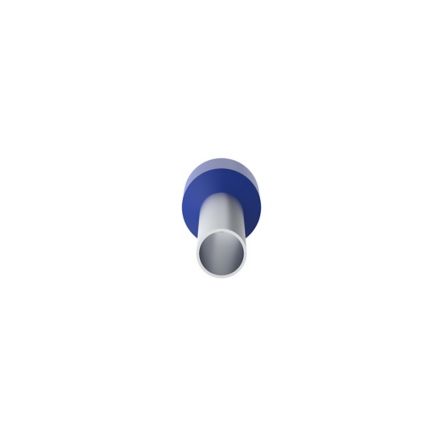

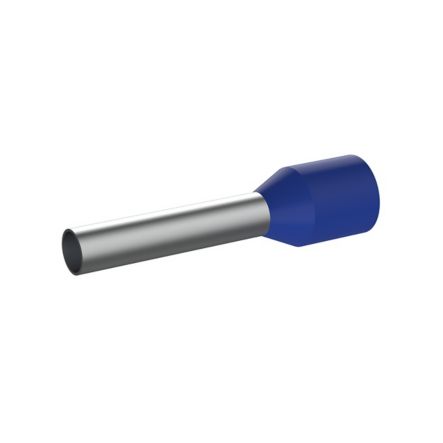

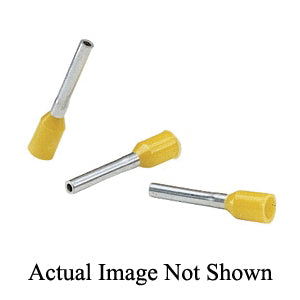

Panduit FSD80-12-D | Pan-Term FSD80-12-D Single wire ferrule, Blue, 12mm Pin L, PK500
Panduit FSD80-12-D Covered Single Wire Ferrule
Panduit - FSD80-12-D - Features
- Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.
- Panduit Pan-Term Ferrule, Type FSD DIN End Sleeve Single Insulated, Stranded Conductor, 14 AWG Conductor, 3/4 in Length, Seamless Barrel, 0.09 in ID x 0.47 in L Barrel, 5/8 in L Wire Strip, 0.17 in Dia Maximum Wire Insulation, Polypropylene Insulation, 221 deg F, Copper, Tin Plated, Blue
- Features + Benefits
- Polypropylene insulation housing
- Meets DIN standards for twin wire containment
- Funnel entry for faster insertion and lower installed cost
- Designed with a seamless barrel to contain loose wire strands for superior terminations
Specifications
Specifications
Panduit - FSD80-12-D - Product Categories
- Wire Termination
- Ferrules
Panduit - FSD80-12-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FSD80-12-D |
| Item Description | Pan-Term FSD80-12-D Single wire ferrule, Blue, 12mm Pin L, PK500 |
| Ferrule Type | Single Wire Standard |
| Cover Material | Polypropylene |
| Copper Conductor Size (AWG) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Copper Conductor Size (AWG) | #14 |
| Minimum Metric Conductor Size (mm²) | 2.5 |
| UL Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL94-HB |
| Wire Strip Length (In.) | 5/8 |
| Wire Strip Length (mm) | 15.9 |
| Pin Length (In.) | 0.47 |
| Pin Length (mm) | 12 |
| Inside Diameter (In.) | 0.09 |
| Inside Diameter (mm) | 2.3 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Operating Temperature (°C) | -54 |
| Minimum Operating Temperature (°F) | -60 |
| Maximum Wire Insulation Diameter (In.) | 0.17 |
| Maximum Wire Insulation Diameter (mm) | 4.2 |
| Overall Length (In.) | 0.75 |
| Overall Length (mm) | 19 |
| Product Type | Covered Single Wire Ferrules |
| Standards Met | DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F |
| Finish/Coating | Tin-Plated |
| For Use With | CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CP-991, CTFP-25, CTFP-40, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH) |
| Packaging Type | Bag |
| Base Material | Copper |
| Color Code | Blue |
| Sub Brand | Pan-Term |
| Part Features | Polypropylene insulation housing conforms to DIN color requirements Meets DIN, UL and CSA standards for single wire containment Funnel entry for faster insertion and lower installed cost Designed with a seamless barrel to contain loose wire strands for superior terminations Eases insertion of wire into terminal block Suitable for limited space panel applications Multiple pin lengths available for a variety of terminal blocks |
Panduit - FSD80-12-D - Package Information
| UPC | 07498376260 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.1164 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - FSD80-12-D - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
