Brand: Panduit
|
SKU:
PAN-FSD80-18-EA

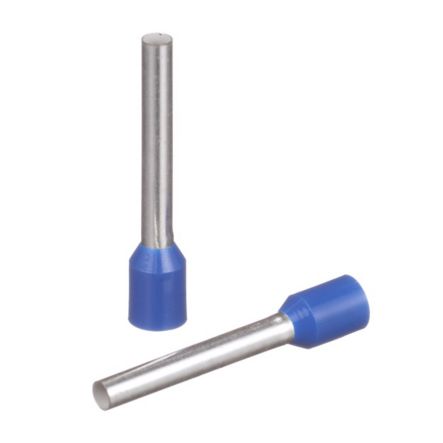

Panduit FSD80-18-D | Pan-Term FSD80-18-D Single wire ferrules, Polypropylene, 14 AWG, PK500
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FSD80-18-D | Pan-Term FSD80-18-D Single wire ferrules, Poly...
Regular price
$1.46
Unit price
Brand: Panduit
|
SKU:
PAN-FSD80-18-EA
Regular price
$1.46
Unit price
Shipping calculated at checkout.
Description
Description
Panduit FSD80-18-D | Pan-Term FSD80-18-D Single wire ferrules, Polypropylene, 14 AWG, PK500
Polypropylene insulated ferrules single wire blue DIN end sleeve, 14 AWG (2.5mm²), .71(18.0mm) pin length.
Panduit FSD80-18-D - FERRULE - POLY INSULATED FERRULE ROHS
Specifications
Specifications
Panduit - FSD80-18-D - Product Categories
- Wire Termination
- Ferrules
Panduit - FSD80-18-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FSD80-18-D |
| Item Description | Pan-Term FSD80-18-D Single wire ferrules, Polypropylene, 14 AWG, PK500 |
| Ferrule Type | Single Wire Standard |
| Cover Material | Polypropylene |
| Copper Conductor Size (AWG) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Copper Conductor Size (AWG) | #14 |
| UL Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL94-HB |
| Wire Strip Length (In.) | 0.87 |
| Wire Strip Length (mm) | 22.2 |
| Pin Length (In.) | 0.71 |
| Pin Length (mm) | 18 |
| Inside Diameter (In.) | 0.09 |
| Inside Diameter (mm) | 2.3 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.17 |
| Maximum Wire Insulation Diameter (mm) | 4.2 |
| Overall Length (In.) | 0.69 |
| Overall Length (mm) | 17.5 |
| Product Type | Covered Single Wire Ferrules |
| Standards Met | DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F |
| Finish/Coating | Tin-Plated |
| For Use With | CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH) |
| Packaging Type | Bag |
| Base Material | Copper |
| Color Code | Blue |
| Sub Brand | Pan-Term |
| Part Features | Polypropylene insulation housing conforms to DIN color requirements Meets DIN, UL and CSA standards for single wire containment Funnel entry for faster insertion and lower installed cost Designed with a seamless barrel to contain loose wire strands for superior terminations Eases insertion of wire into terminal block Suitable for limited space panel applications Multiple pin lengths available for a variety of terminal blocks |
Panduit - FSD80-18-D - Package Information
| UPC | 07498376261 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.1164 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
