Panduit FSD80-8-KD6 | Single wire ferrules on reel (DIN color code)...
Description
Description
Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.

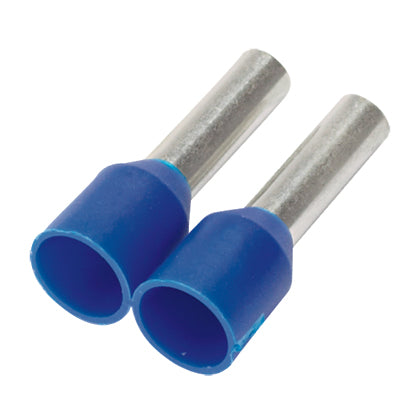

Panduit Ferrule, Type FSD Single Insulated, Stranded Conductor, 14 AWG Conductor, 0.57 in Length, Seamless Tubular Barrel, 0.09 in ID x 0.31 in L Barrel, Specifications: 0.15 in Dia Maximum Wire Insulation, 0.39 in Mounting Hole Size, 13/32 in L Wire Strip, Polypropylene Insulation, 221 deg F, Copper, Tin Plated, Blue
Features + Benefits
- Designed with a seamless barrel to contain loose wire strands for superior terminations
- Eases insertion of wire into terminal block
- Meets DIN, UL and CSA standards for wire containment
Panduit FSD80-8-KD6 Key Specs
| Ferrule Type | Single Wire Standard |
| Copper Conductor Size (AWG) | 14 |
| Maximum Copper Conductor Size (AWG) | 14 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Copper Conductor Size (kcmil) | 14 |
| Minimum Metric Conductor Size (mm²) | 3.9 |
| Class K Copper Flex Conductor Size (AWG) | 14 |
| Class M Copper Flex Conductor Size (AWG) | 14 |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL 94 HB |
| Wire Strip Length (In.) | 0.39 |
| Wire Strip Length (mm) | 10 |
| Pin Length (In.) | 0.31 |
| Pin Length (mm) | 8 |
Panduit FSD80-8-KD6 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - DNH18-250FIM-Q Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - A4131006 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
