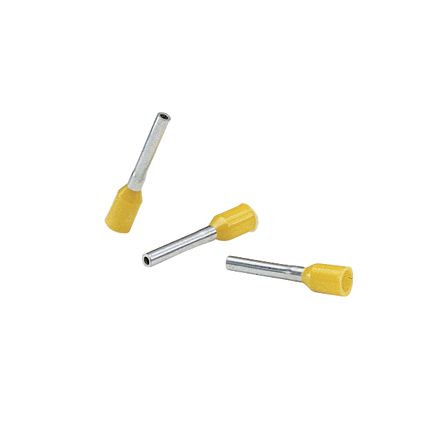

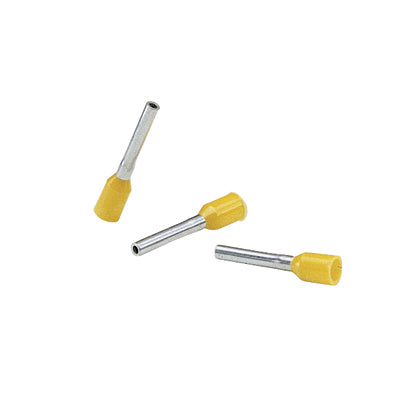

Panduit FSD81-12-C | Pan-Term Covered Single Wire Ferrules
Description
Description
Simplifies reliable connections with our single wire ferrule with end sleeve for stranded wires in terminal blocks, meeting industry standards for various applications.
Polypropylene insulated ferrules - single wire DIN end sleeve.
Ferrules and Crimping Tools combine to deliver the highest quality terminations at the lowest installed cost. Offering the highest documented performance in the industry.

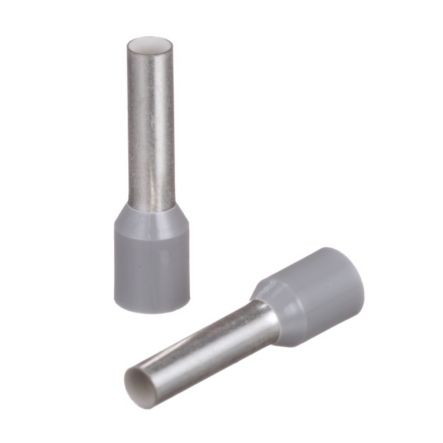

Panduit Wire Ferrule, Series: FSD, 12 AWG Conductor, 0.11 in ID x 0.47 in L Barrel, Seamless Barrel, Stranded Conductor, Insulated Insulation, Polypropylene Insulation, Crimped, Tin Plated Copper Contact, 221 deg F, 0.79 in Overall Length, Gray
Panduit - FSD81-12-C - Features
- Designed with a seamless barrel to contain loose wire strands for superior terminations Eases insertion of wire into terminal block
- Funnel entry for faster insertion and lower installed cost
- Designed with a seamless barrel to contain loose wire strands for superior terminations
- Eases insertion of wire into terminal block
- Polypropylene insulation housing conforms to DIN color requirements
- Meets DIN standards for single wire containment
- Funnel entry for faster insertion and lower installed cost
- Designed with a seamless barrel to contain loose wire strands for superior terminations
- Eases insertion of wire into terminal block
- Suitable for limited space panel applications
- Multiple pin lengths available for a variety of terminal blocks
Specifications
Specifications
Panduit - FSD81-12-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FSD81-12-C |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Ferrule Type | Single Wire Standard |
| Cover Material | Polypropylene |
| Copper Conductor Size (AWG) | 12 |
| Maximum Copper Conductor Size (AWG) | 12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 4 |
| Minimum Metric Conductor Size (mm²) | 4 |
| UL Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL94-HB |
| Wire Strip Length (In.) | 5/8 |
| Wire Strip Length (mm) | 15.9 |
| Pin Length (In.) | 0.47 |
| Pin Length (mm) | 12 |
| Inside Diameter (In.) | 0.11 |
| Inside Diameter (mm) | 2.9 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Operating Temperature (°C) | -54 |
| Minimum Operating Temperature (°F) | -60 |
| Maximum Wire Insulation Diameter (In.) | 0.19 |
| UPC | 07498376745 |
Panduit - FSD81-12-C - Videos
| Panduit FSD81-12-C Video 1 | Click to View |
|---|---|
| Panduit FSD81-12-C Video 2 | Click to View |
