Brand: Panduit
|
SKU:
4060643-JBT

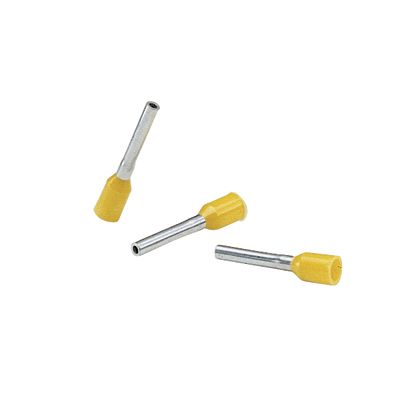

Panduit FSD82-12-C | Pan-Term FSD82-12-C Single wire ferrule, Yellow, 12mm Pin L, PK100
Regular price
$1.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FSD82-12-C | Pan-Term FSD82-12-C Single wire ferrule, Yello...
Regular price
$1.47
Unit price
Description
Description
Panduit FSD82-12-C | Pan-Term FSD82-12-C Single wire ferrule, Yellow, 12mm Pin L, PK100
Panduit FSD81-12-C Covered Single Wire Ferrule
Specifications
Specifications
Panduit - FSD82-12-C - Product Categories
- Wire Termination
- Ferrules
Panduit - FSD82-12-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FSD82-12-C |
| Item Description | Pan-Term FSD82-12-C Single wire ferrule, Yellow, 12mm Pin L, PK100 |
| Ferrule Type | Single Wire Standard |
| Cover Material | Polypropylene |
| Copper Conductor Size (AWG) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Copper Conductor Size (AWG) | #10 |
| Minimum Metric Conductor Size (mm²) | 6 |
| UL Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL94-HB |
| Wire Strip Length (In.) | 5/8 |
| Wire Strip Length (mm) | 15.9 |
| Pin Length (In.) | 0.47 |
| Pin Length (mm) | 12 |
| Inside Diameter (In.) | 0.14 |
| Inside Diameter (mm) | 3.6 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Operating Temperature (°C) | -54 |
| Minimum Operating Temperature (°F) | -60 |
| Maximum Wire Insulation Diameter (In.) | 0.24 |
| Maximum Wire Insulation Diameter (mm) | 6.2 |
| Overall Length (In.) | 0.79 |
| Overall Length (mm) | 20 |
| Product Type | Covered Single Wire Ferrule |
| Standards Met | DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F |
| Finish/Coating | Tin-Plated |
| For Use With | CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CP-992, CTFP-100, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH) |
| Packaging Type | Bag |
| Base Material | Copper |
| Color Code | Yellow |
| Sub Brand | Pan-Term |
| Part Features | Polypropylene insulation housing conforms to DIN color requirements Meets DIN, UL and CSA standards for single wire containment Funnel entry for faster insertion and lower installed cost Designed with a seamless barrel to contain loose wire strands for superior terminations Eases insertion of wire into terminal block Suitable for limited space panel applications Multiple pin lengths available for a variety of terminal blocks |
Brand Name - FSD82-12-C - Package Information
| UPC | 07498376265 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.1164 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Brand Name - FSD82-12-C - Videos
| Video URL 1 | Click to View |
|---|---|
| Video URL 2 | Click to View |
