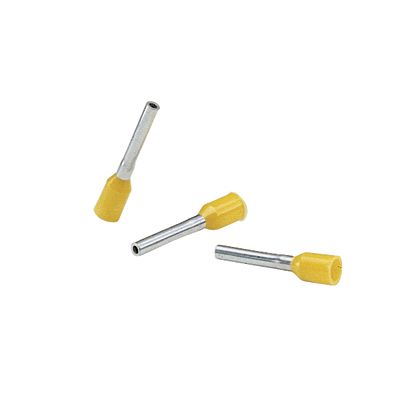

Panduit FSD84-18-C | Pan-Term FSD84-18-C Covered single wire ferrules
Regular price
$84.17
Unit price
Brand: Panduit
|
SKU:
DRC-051402
Regular price
$84.17
Unit price
Description
Description
Panduit FSD84-18-C | Pan-Term FSD84-18-C Covered single wire ferrules
Polypropylene insulated ferrules single wire blue DIN end sleeve, 6 AWG (16.0mm²), .71(18.0mm) pin length.
Specifications
Specifications
Panduit - FSD84-18-C - Product Categories
- Wire Termination
- Ferrules
Panduit - FSD84-18-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FSD84-18-C |
| Item Description | Pan-Term FSD84-18-C Covered single wire ferrules |
| Ferrule Type | Single Wire Standard |
| Cover Material | Polypropylene |
| Copper Conductor Size (AWG) | #6 |
| Maximum Copper Conductor Size (AWG) | #6 |
| Maximum Metric Conductor Size (mm²) | 16 |
| Minimum Copper Conductor Size (AWG) | #6 |
| UL Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL94-HB |
| Wire Strip Length (In.) | 0.87 |
| Wire Strip Length (mm) | 22.2 |
| Pin Length (In.) | 0.71 |
| Pin Length (mm) | 18 |
| Inside Diameter (In.) | 0.24 |
| Inside Diameter (mm) | 6 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.35 |
| Maximum Wire Insulation Diameter (mm) | 8.8 |
| Overall Length (In.) | 1.14 |
| Overall Length (mm) | 29 |
| Product Type | Covered Single Wire Ferrule |
| Standards Met | DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F |
| Finish/Coating | Tin-Plated |
| For Use With | CT-1104, CT-2500 (CT-2504CH) |
| Packaging Type | Bag |
| Base Material | Copper |
| Color Code | Blue |
| Sub Brand | Pan-Term |
| Part Features | Polypropylene insulation housing conforms to DIN color requirements Meets DIN, UL and CSA standards for single wire containment Funnel entry for faster insertion and lower installed cost Designed with a seamless barrel to contain loose wire strands for superior terminations Eases insertion of wire into terminal block Suitable for limited space panel applications Multiple pin lengths available for a variety of terminal blocks |
Brand Name - FSD84-18-C - Package Information
| UPC | 07498376270 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.1912 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
