Panduit FSD85-18-L | Pan-Term FSD85-18-L Single wire ferrules, Poly...
Description
Description

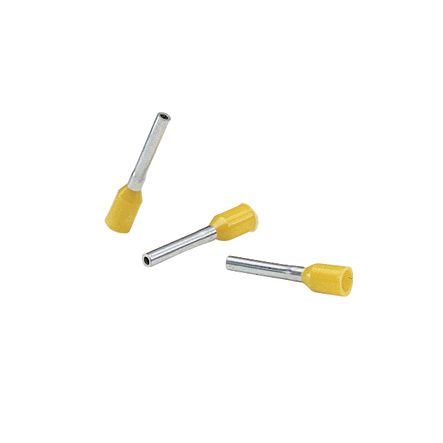

The single wire DIN end sleeve insulated ferrule in yellow has a funnel entry for faster insertion and lower installation cost. It is intended for American Wire Gauge (AWG) #4 (25.0 mm²) wire ferrules and supports a maximum wire insulated diameter of 0.43 (11.0 mm). The insulated ferrule is 1.22 (31.0 mm) long and has a wire strip length of 0.875 (22.3 mm). It comes in standard packages of 50.
Panduit FSD85-18-L - FERRULE - INSULATED FERRULE - SINGLE
Specifications
Specifications
Panduit - FSD85-18-L - Product Categories
- Wire Termination
- Ferrules
Panduit - FSD85-18-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FSD85-18-L |
| Item Description | Pan-Term FSD85-18-L Single wire ferrules, Polypropylene, 4 AWG, PK50 |
| Ferrule Type | Single Wire Standard |
| Cover Material | Polypropylene |
| Copper Conductor Size (AWG) | #4 |
| Maximum Copper Conductor Size (AWG) | #4 |
| Maximum Metric Conductor Size (mm²) | 25 |
| Minimum Copper Conductor Size (AWG) | #4 |
| UL Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL94-HB |
| Wire Strip Length (In.) | 0.87 |
| Wire Strip Length (mm) | 22.2 |
| Pin Length (In.) | 0.71 |
| Pin Length (mm) | 18 |
| Inside Diameter (In.) | 0.3 |
| Inside Diameter (mm) | 7.5 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.43 |
| Maximum Wire Insulation Diameter (mm) | 11 |
| Overall Length (In.) | 1.22 |
| Overall Length (mm) | 31 |
| Product Type | Covered Single Wire Ferrules |
| Standards Met | DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F |
| Finish/Coating | Tin-Plated |
| For Use With | CT-1005 |
| Packaging Type | Bag |
| Base Material | Copper |
| Color Code | Yellow |
| Sub Brand | Pan-Term |
| Part Features | Polypropylene insulation housing conforms to DIN color requirements Meets DIN, UL and CSA standards for single wire containment Funnel entry for faster insertion and lower installed cost Designed with a seamless barrel to contain loose wire strands for superior terminations Eases insertion of wire into terminal block Suitable for limited space panel applications Multiple pin lengths available for a variety of terminal blocks |
Panduit - FSD85-18-L - Package Information
| UPC | 07498376272 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.1912 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
