Brand: Panduit
|
SKU:
10044398

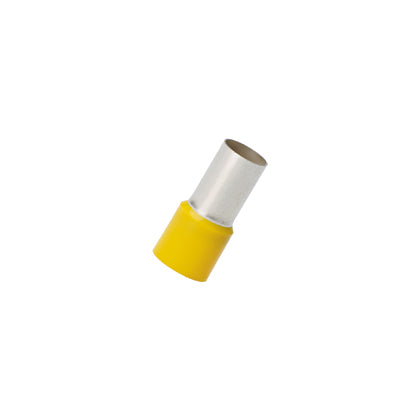

Panduit FSD89-20-Q | Insulated single wire ferrules (DIN or French color code) | UPC - 07498333369
Regular price
$78.58
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FSD89-20-Q | Insulated single wire ferrules (DIN or French ...
Regular price
$78.58
Unit price
Description
Description
Polypropylene insulated ferrules single wire yellow DIN end sleeve, 2/0 AWG (70.0mm²) Wire Size, 0.79 (20.0mm) Pin Length.
Panduit Panduit FSD89-20-Q | Insulated single wire ferrules (DIN or French color code) | UPC - 07498333369 Key Specs
| Insulation Material | Polypropylene |
| Flammability Rating | UL 94 HB |
| Wire Strip Length (In.) | 0.94 |
| Wire Strip Length (mm) | 23.8 |
| Pin Length (In.) | 0.79 |
| Pin Length (mm) | 20 |
| Insulation Type | Polypropylene |
| Insulation Diameter (In.) | 0.63 |
| Insulation Diameter (mm) | 16 |
| Inside Diameter (In.) | 0.49 |
| Inside Diameter (mm) | 12.5 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.63 |
| Maximum Wire Insulation Diameter (mm) | 16 |
| Overall Length (In.) | 1.46 |
| Overall Length (mm) | 37 |
Panduit Panduit FSD89-20-Q | Insulated single wire ferrules (DIN or French color code) | UPC - 07498333369 Data Sheets
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Catalog Cut Sheets | Selection Guide - Pan-Term Ferrules | Download and View |
| Part Drawings | Ferrule - Single Wire with Sleeve (DIN) | Download and View |
Panduit Panduit FSD89-20-Q | Insulated single wire ferrules (DIN or French color code) | UPC - 07498333369 Environmental Information
| Panduit's RoHS Statement | Download and View |
