Panduit FSD90-25-Q | Insulated single wire ferrules (DIN or French ...
Description
Description
Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.

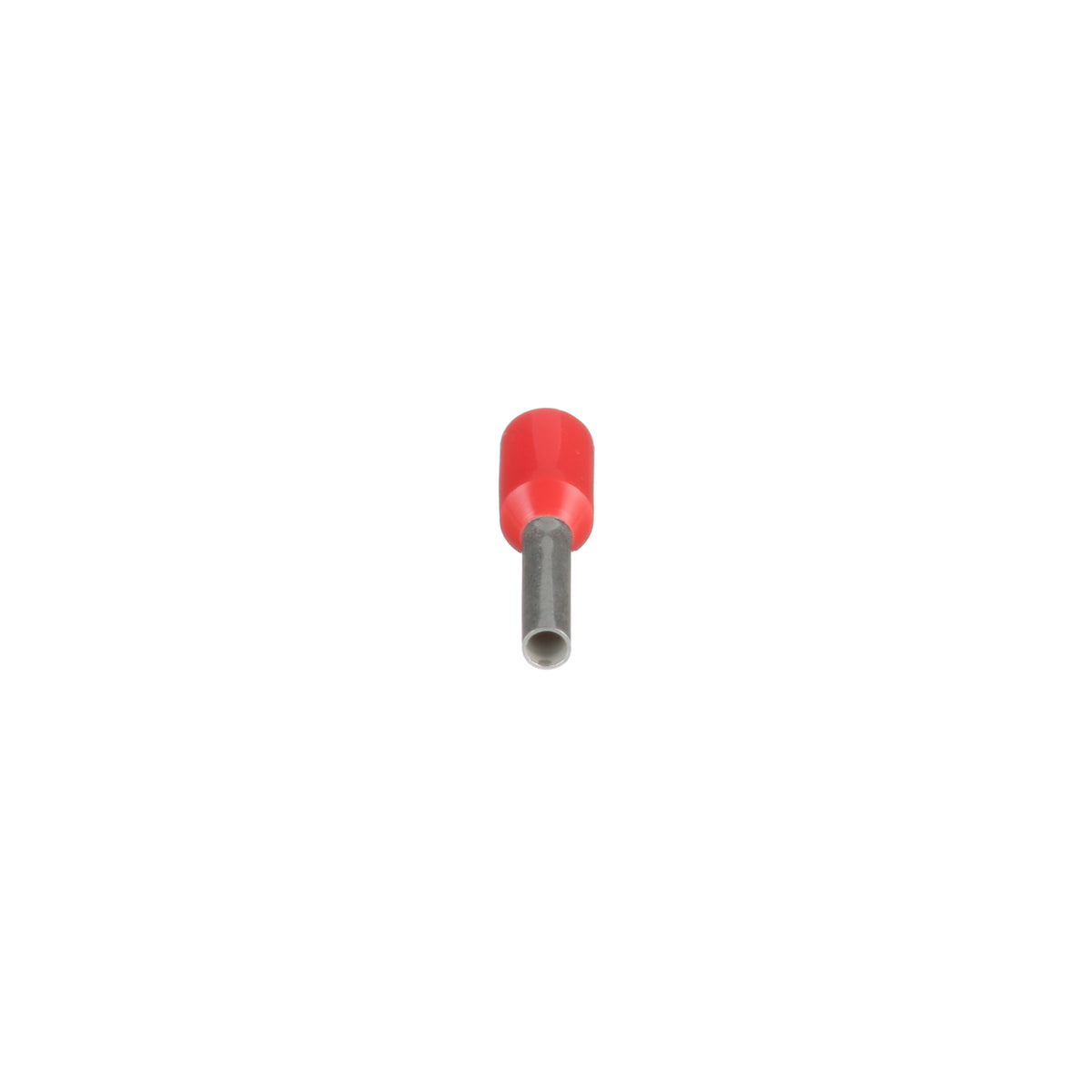

Panduit Pan-Term Ferrule, Type FSD DIN End Sleeve Single Insulated, Stranded Conductor, 3/0 AWG Conductor, 1.73 in Length, Seamless Barrel, 0.58 in ID x 0.98 in L Barrel, 1-1/8 in L Wire Strip, 0.71 in Dia Maximum Wire Insulation, Polypropylene Insulation, 221 deg F, Copper, Tin Plated, Red
- Polypropylene insulation housing
- Continuously molded design provides consistent placement of ferrules in tool to ensure fast, reliable terminations
- Designed for use with the semi-automatic ferrule crimping tool CT-1000 for medium volume applications
Panduit Panduit FSD90-25-Q | Insulated single wire ferrules (DIN or French color code) | UPC - 07498333371 Key Specs
| Insulation Material | Polypropylene |
| Flammability Rating | UL 94 HB |
| Wire Strip Length (In.) | 1.13 |
| Wire Strip Length (mm) | 28.6 |
| Pin Length (In.) | 0.98 |
| Pin Length (mm) | 25 |
| Insulation Type | Polypropylene |
| Insulation Diameter (In.) | 0.71 |
| Insulation Diameter (mm) | 18 |
| Inside Diameter (In.) | 0.57 |
| Inside Diameter (mm) | 14.5 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.71 |
| Maximum Wire Insulation Diameter (mm) | 18 |
| Overall Length (In.) | 1.73 |
| Overall Length (mm) | 44 |
Panduit Panduit FSD90-25-Q | Insulated single wire ferrules (DIN or French color code) | UPC - 07498333371 Environmental Information
| Panduit's RoHS Statement | Download and View |
