Brand: Panduit
|
SKU:
10044409

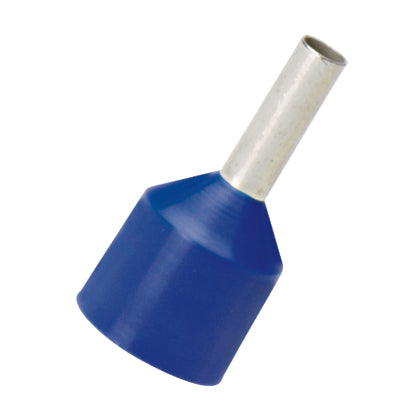

Panduit FSDXL80-8-C | Insulated single wire ferrules (DIN or French color code) | UPC - 07498333381
Regular price
$39.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FSDXL80-8-C | Insulated single wire ferrules (DIN or French...
Regular price
$39.31
Unit price
Description
Description
Polypropylene insulated ferrules single wire blue DIN color expanded short circuit protection end sleeve, 14 AWG (2.5mm²), .31(8.0mm) pin length.
Panduit Panduit FSDXL80-8-C | Insulated single wire ferrules (DIN or French color code) | UPC - 07498333381 Key Specs
| Insulation Material | Polypropylene |
| Flammability Rating | UL 94 HB |
| Wire Strip Length (In.) | 0.47 |
| Wire Strip Length (mm) | 11.9 |
| Pin Length (In.) | 0.31 |
| Pin Length (mm) | 8 |
| Insulation Type | Polypropylene |
| Insulation Diameter (In.) | 0.31 |
| Insulation Diameter (mm) | 7.8 |
| Inside Diameter (In.) | 0.09 |
| Inside Diameter (mm) | 2.3 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.31 |
| Maximum Wire Insulation Diameter (mm) | 7.8 |
| Outer Diameter (In.) | 0.1 |
| Outer Diameter (mm) | 2.6 |
Panduit Panduit FSDXL80-8-C | Insulated single wire ferrules (DIN or French color code) | UPC - 07498333381 Data Sheets
| Specification Sheets | Ferrules with Sleeves for Short Circuit Protection Spec Sheet | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Catalog Cut Sheets | Insulated Ferrules - Single Wire for Short Circuit Protection | Download and View |
Panduit Panduit FSDXL80-8-C | Insulated single wire ferrules (DIN or French color code) | UPC - 07498333381 Environmental Information
| Panduit's RoHS Statement | Download and View |
