Brand: Panduit
|
SKU:
9955813
Panduit FSNR624Y | Indoor/Outdoor All-Dielectric Cable | UPC - 07498305065
Regular price
$6.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FSNR624Y | Indoor/Outdoor All-Dielectric Cable | UPC - 0749...
Regular price
$6.29
Unit price
Description
Description

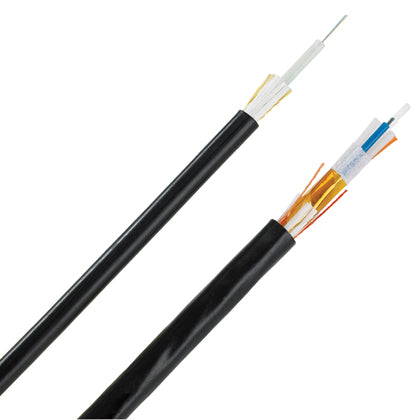

62.5um OM1 24 Fiber Indoor-Outdoor Stranded Tube Cable, Riser (OFNR), 250um Fibers
Panduit Panduit FSNR624Y | Indoor/Outdoor All-Dielectric Cable | UPC - 07498305065 Key Specs
| Note | FSNR624Y replaces FSNR624 |
| Cable Construction | Indoor/Outdoor Loose Tube |
| Sub Brand | Opti-Core |
| Environment | Indoor/Outdoor |
| Fiber Type | OM1 |
| Number of Fibers | 24 |
| Fiber Diameter (µm) | 62.5 |
| Outer Diameter (In.) | 0.4 |
| Outer Diameter (mm) | 10.2 |
| Bend Radius (In.) | 4 |
| Bend Radius (mm) | 101.6 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | -30 |
| Minimum Installation Temperature (°F) | -22 |
| Maximum Installation Tension (lb) | 600 |
Panduit Panduit FSNR624Y | Indoor/Outdoor All-Dielectric Cable | UPC - 07498305065 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - FOCRZ06Y Product Page | Download and View |
| Part Drawings | Part Drawings - PDF - FSNR924Y | Download and View |
| Installation Documents | Wire Mesh Pulling Grips for Fiber Optic Cable Best Practices: FS080 | Download and View |
Panduit Panduit FSNR624Y | Indoor/Outdoor All-Dielectric Cable | UPC - 07498305065 Environmental Information
| Panduit's RoHS Statement | Download and View |
