Panduit FST2MC5BL | OptiCam ST Simplex, 50µm OM2, with Black Boot
Description
Description

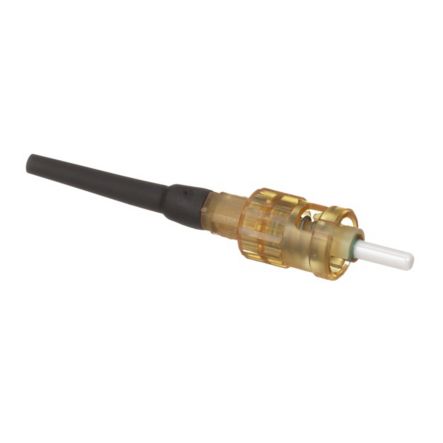

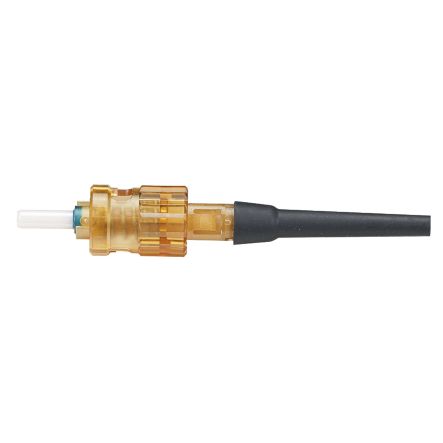

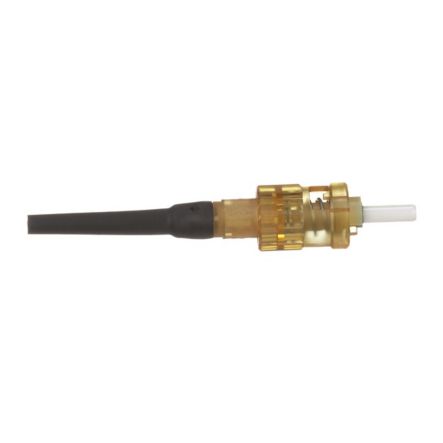

The OptiCam ST Fiber Optic Connector is a multimode 50/125?m OM2 duplex fiber connector, intended for 900-micron tight-buffered fiber installation. Field termination can be done in about two minutes using the OptiCam 2 Termination Tool. The pre-polished fiber endface eliminates time-consuming field polishing, reducing installation costs. The ST connector has a natural-colored body and backbone, with a black 900?m boot.
For use with OCTT2 OptiCam fiber termination tool.
Specifications
Specifications
Panduit - FST2MC5BL - Product Categories
- Fiber Optic Systems
- Fiber Optic Connectors
Panduit - FST2MC5BL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FST2MC5BL |
| Item Description | OptiCam ST Simplex, 50µm OM2, with Black Boot |
| Polish Type | Pre-Polished |
| Fiber Type | OM2 |
| Connection Type | ST |
| Sub Brand | OptiCam |
| Application | Maintenance or emergency restoration of fiber networks and retrofit/initial install in both behind-the-wall (BTW) and in the permanent side of panelized interconnect and cross-connect. |
| Body Style | Simplex |
| Color | Black |
| Boot Color | Black |
| Backbone Color | Natural |
| Fiber Diameter (µm) | 50 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Maximum Installation Temperature (°F) | 108 |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Installation Temperature (°C) | 42 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Installation Temperature (°C) | 38 |
| Minimum Installation Temperature (°F) | 100 |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 20 |
| Standards Met | RoHS compliant. TIA/EIA-604 FOCIS-2 compliant; exceeds TIA/EIA-568-D.3 requirements |
| Product Type | Fiber Optic Connectors, ST2 OptiCam |
| Connector Type | ST-COMPATIBLE |
| Fiber Type | OM3/OM4 MULTIMODE |
| UNSPSC Code | 43223300 |
Panduit - FST2MC5BL - Package Information
| UPC | 61305625927 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0032 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.0324 |
