Brand: Panduit
|
SKU:
968089

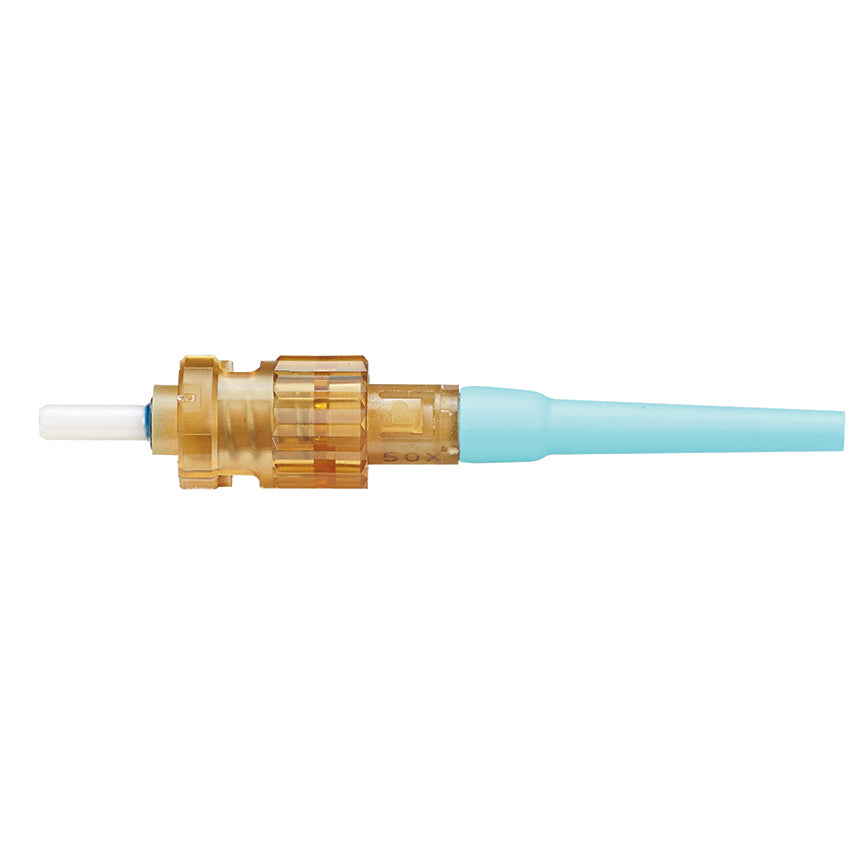

Panduit FST2MCXAQ | Fiber Optic Connectors, ST2 OptiCam | UPC - 61305631583
Regular price
$22.66
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FST2MCXAQ | Fiber Optic Connectors, ST2 OptiCam | UPC - 613...
Regular price
$22.66
Unit price
Description
Description
ST2 OM3/OM4 900?m multimode simplex fiber optic connector. Aqua Boot. For use with OCTT2 OptiCam fiber termination tool.
Panduit Fiber Optic Connectors, ST2 OptiCam Key Specs
| Polish Type | Pre-Polished |
| Fiber Type | OM3/OM4 |
| Connection Type | ST |
| Sub Brand | OptiCam |
| Application | Maintenance or emergency restoration of fiber networks and retrofit/initial install in both behind-the-wall (BTW) and in the permanent side of panelized interconnect and cross-connect. |
| Body Style | Simplex |
| Color | Aqua |
| Boot Color | Aqua |
| Backbone Color | Natural |
| Fiber Diameter (µm) | 50 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Maximum Installation Temperature (°F) | 108 |
| Maximum Installation Temperature (°C) | 42 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Installation Temperature (°C) | 38 |
| Minimum Installation Temperature (°F) | 100 |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 26 |
| Standards Met | TIA/EIA-604 FOCIS-2 compliant; exceeds TIA/EIA-568-D.3 requirements |
Panduit Fiber Optic Connectors, ST2 OptiCam Data Sheets
| Specification Sheets | ST2 OptiCam Pre-Polished Fiber Optic Connectors | Download and View |
| Product Bulletins | OptiCam® 2 Termination Tool | Download and View |
| Part Drawings | Opticam ST2 Connector Part drawing M01894CS-DC | Download and View |
Panduit Fiber Optic Connectors, ST2 OptiCam Environmental Information
| Panduit's RoHS Statement | Download and View |
