Panduit FSTMABL | ST Splx Conn, Pot & Polish for OM1/2
Regular price
$11.08
Unit price
Brand: Panduit
|
SKU:
244843
Regular price
$11.08
Unit price
Description
Description

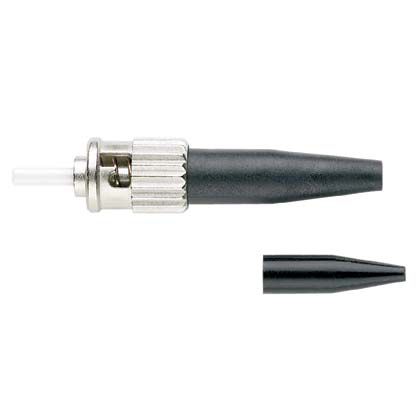

Panduit FSTMABL | ST Splx Conn, Pot & Polish for OM1/2
Cut installation time in half with our ST fiber optic connector. Its pre-polished design is ideal for fast repairs, data centers, and behind-the-wall connections, reducing your costs and errors.
Panduit Fiber Optic Connector, Field Polish, ST Simplex Connector, Tight Buffered Fiber, 3 mm Jacketed Cable, Zirconia Ceramic Ferrule, Ceramic, Black
Panduit - FSTMABL - Features
- Robust design connectors
- FOCIS-2 compatible
- Lower installed cost due to faster termination time
- Full length adhesive fill tube
- Adapter modules can be used in all Mini-Com closet products and work area outlets
- Module allows color coding for network segregation
Specifications
Specifications
Panduit - FSTMABL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FSTMABL |
| Polish Type | Field Polish |
| Fiber Type | OM1 |
| Connection Type | ST |
| Application | Used in fiber optic backbone and horizontal applications for high speed data transmissions |
| Body Style | Simplex |
| Color | Black |
| Boot Color | Black |
| Backbone Color | Black |
| Fiber Diameter (µm) | 62.5 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 42 |
| Maximum Installation Temperature (°F) | 108 |
| Minimum Installation Temperature (°C) | 38 |
| Minimum Installation Temperature (°F) | 100 |
| Maximum Connector Insertion Loss (dB) | 0.15 |
| Minimum Connector Return Loss (dB) | 20 |
| Standards Met | RoHS compliant. TIA/EIA-604 FOCIS-2 compatible, exceed TIA/EIA-568-B.3 requirements. |
| Product Type | Fiber Optic Connector |
| UPC | 07498385511 |
Panduit - FSTMABL - Environmental Information
| RoHS Status | Not applicable |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
