Panduit FSTMM50BL | OptiCam
Regular price
$32.74
Unit price
Brand: Panduit
|
SKU:
248559
Regular price
$32.74
Unit price
Description
Description

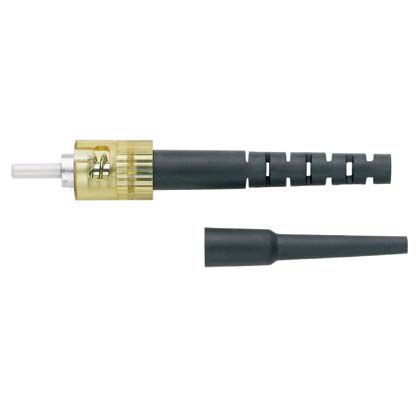

Panduit FSTMM50BL | OptiCam
Cut installation time in half with our ST fiber optic connector. Its pre-polished design is ideal for fast repairs, data centers, and behind-the-wall connections, reducing your costs and errors.
Panduit Opti-Crimp Fiber Optic Connector, Pre-Polished, ST Simplex Connector, 50/125 um OM2 Multi-Mode Fiber, 900 um Buffered Cable, Zirconia Ceramic Ferrule, Black
Panduit - FSTMM50BL - Features
- Pre-polished fiber stub eliminates polishing steps, speeding installation
- VFL verification during crimp process provides installer with a visual signal when optimal continuity is made and the crimp step can be performed
- Mechanical crimp cable retention consistently provides higher than industry standard cable retention, requires no adhesive, speeding installation
- Proven 2.5 mm ceramic ferrules uses standard termination tools and procedures, provides strength and reliability
- Robust design protects fibers from mechanical and environmental stress
Specifications
Specifications
Panduit - FSTMM50BL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FSTMM50BL |
| Polish Type | Field Polish |
| Fiber Type | OM2 |
| Connection Type | ST |
| Sub Brand | OptiCam |
| Application | Used in fiber optic backbone and horizontal applications for high-speed data transmissions. |
| Body Style | Simplex |
| Color | Black |
| Boot Color | Black |
| Backbone Color | Black |
| Fiber Diameter (µm) | 50 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 42 |
| Maximum Installation Temperature (°F) | 108 |
| Minimum Installation Temperature (°C) | 38 |
| Minimum Installation Temperature (°F) | 100 |
| Maximum Connector Insertion Loss (dB) | 0.35 |
| Minimum Connector Return Loss (dB) | 20 |
| Standards Met | RoHS compliant. TIA/EIA-604 FOCIS-2 compliant; exceeds TIA/EIA-568-D.3 requirements |
| UPC | 07498383252 |
Panduit - FSTMM50BL - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | OBSOLETE |
