Panduit FSTSABU | ST Splx Conn, Pot & Polish for OS2
Regular price
$24.68
Unit price
Brand: Panduit
|
SKU:
248564
Regular price
$24.68
Unit price
Description
Description

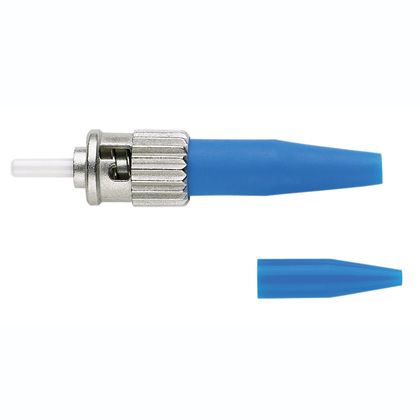

Panduit FSTSABU | ST Splx Conn, Pot & Polish for OS2
Cut installation time in half with our ST fiber optic connector. Its pre-polished design is ideal for fast repairs, data centers, and behind-the-wall connections, reducing your costs and errors.
Panduit OptiCam Fiber Optic Connector, Field Polished, ST Simplex Connector, OS1/OS2 Singlemode Fiber, 3 mm Jacketed, 900 um Buffered Fiber Cable, Zirconia Ceramic Ferrule, Ceramic/Zinc, Blue
Specifications
Specifications
Panduit - FSTSABU - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FSTSABU |
| Polish Type | Field Polish |
| Fiber Type | OS1/OS2 |
| Connection Type | ST |
| Sub Brand | OptiCam |
| Application | Used in fiber optic backbone and horizontal applications for high speed data transmissions |
| Body Style | Simplex |
| Color | Blue |
| Boot Color | Blue |
| Backbone Color | Black |
| Fiber Diameter (µm) | 9 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 42 |
| Maximum Installation Temperature (°F) | 108 |
| Minimum Installation Temperature (°C) | 38 |
| Minimum Installation Temperature (°F) | 100 |
| Maximum Connector Insertion Loss (dB) | 0.2 |
| Minimum Connector Return Loss (dB) | 40 |
| Standards Met | RoHS compliant. TIA/EIA-604 FOCIS-2 compatible connectors, Exceed TIA/EIA-568-B.3 requirements. |
| UPC | 07498385513 |
Panduit - FSTSABU - Environmental Information
| RoHS Status | Not applicable |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
