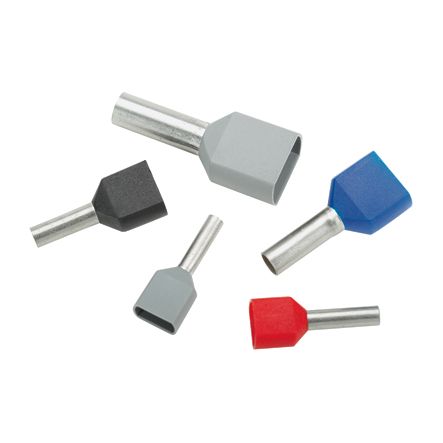

Panduit FTD77-8-D | Twin wire ferrule | UPC - 07498376308
Description
Description

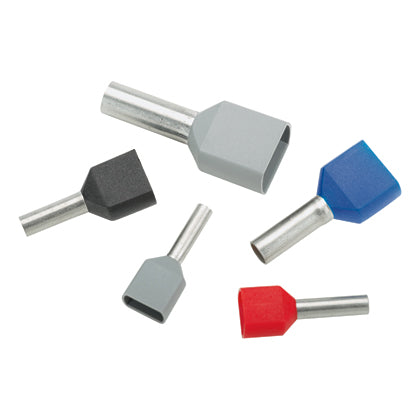

Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.
Panduit Pan-Term Wire Ferrule, Type FTD Twin Insulated, Stranded Conductor, 18 AWG Conductor, 0.59 in Length, Seamless Barrel, 0.2 in OD Barrel, Specifications: 7/16 in L Wire Strip, 0.13 in Dia Maximum Wire Insulation, Polypropylene Insulation, 221 deg F, Copper, TiN Coated, Red
Features + Benefits
- Polypropylene insulation housing
- Meets DIN standards for twin wire containment
- Funnel entry for faster insertion and lower installed cost
- Designed with a seamless barrel to contain loose wire strands for superior terminations
Panduit FTD77-8-D | Twin wire ferrule | UPC - 07498376308 Key Specs
| Ferrule Type | Twin Wire |
| Cover Material | Polypropylene |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Flammability Rating | UL94-HB |
| Wire Strip Length (In.) | 7/16 |
| Wire Strip Length (mm) | 11.2 |
| Pin Length (In.) | 0.31 |
| Pin Length (mm) | 8 |
| Inside Diameter (In.) | 0.08 |
| Inside Diameter (mm) | 2.1 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Operating Temperature (°C) | -54 |
| Minimum Operating Temperature (°F) | -60 |
| Maximum Wire Insulation Diameter (In.) | 0.11 |
| Maximum Wire Insulation Diameter (mm) | 2.8 |
| Overall Length (In.) | 0.59 |
| Overall Length (mm) | 15 |
| Product Type | Twin wire ferrule |
Panduit FTD77-8-D | Twin wire ferrule | UPC - 07498376308 Data Sheets
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Catalog Cut Sheets | Insulated Ferrules - Twin Wire DIN End Sleeve | Download and View |
| Videos | Panduit Ferrule Installation Machine Video 16:9 CP-991 | Download and View |
Panduit FTD77-8-D | Twin wire ferrule | UPC - 07498376308 Environmental Information
| Panduit's RoHS Statement | Download and View |
