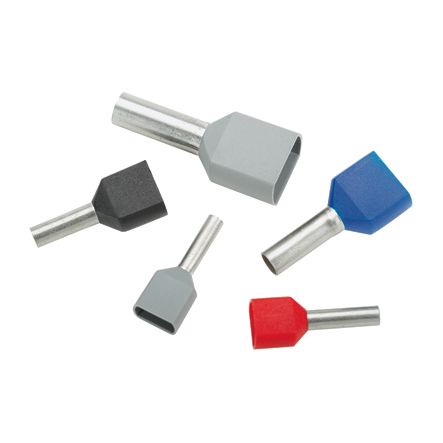

Panduit FTD78-12-D | Pan-Term Twin wire ferrule, Black, 12mm Pin L, PK500
Regular price
$439.89
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FTD78-12-D | Pan-Term Twin wire ferrule, Black, 12mm Pin L,...
Regular price
$439.89
Unit price
Brand: Panduit
|
SKU:
PAN-FTD78-12-RAW
Regular price
$439.89
Unit price
Shipping calculated at checkout.
Description
Description
Panduit FTD78-12-D | Pan-Term Twin wire ferrule, Black, 12mm Pin L, PK500
Faster installation, secure connections, and multiple lengths for diverse terminal blocks with our twin wire ferrule with end sleeve, easily connect stranded wires in tight spaces.
Specifications
Specifications
Panduit - FTD78-12-D - Specifications
| Ferrule Type | Twin Wire |
|---|---|
| Cover Material | Polypropylene |
| Copper Conductor Size (AWG) | 16 |
| Maximum Copper Conductor Size (AWG) | 16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| UL Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL94-HB |
| Wire Strip Length (In.) | 21/32 |
| Wire Strip Length (mm) | 16.8 |
| Pin Length (In.) | 0.47 |
| Pin Length (mm) | 12 |
| Inside Diameter (In.) | 0.09 |
| Inside Diameter (mm) | 2.3 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Operating Temperature (°C) | -54 |
| Minimum Operating Temperature (°F) | -60 |
| Maximum Wire Insulation Diameter (In.) | 0.12 |
Panduit - FTD78-12-D - Package Includes
| UPC | 07498376311 |
|---|---|
| Std. Pkg. Qty. | 500 |
| Std. Pkg. Volume (cf) | 0.1912 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
Panduit - FTD78-12-D - Videos
| Panduit FTD78-12-D Video | Click to View |
|---|
