Brand: Panduit
|
SKU:
FTD78-8-D-EA

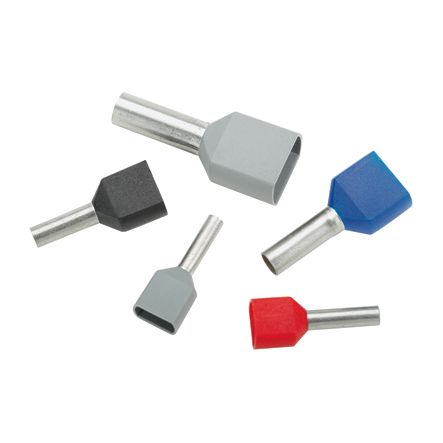

Panduit FTD78-8-D | Pan-Term Ftd78-8-D Twin Wire Ferrule, Black, 8Mm Pin L, Pk500
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FTD78-8-D | Pan-Term Ftd78-8-D Twin Wire Ferrule, Black, 8M...
Regular price
$1.46
Unit price
Description
Description
Panduit FTD78-8-D | Pan-Term Ftd78-8-D Twin Wire Ferrule, Black, 8Mm Pin L, Pk500

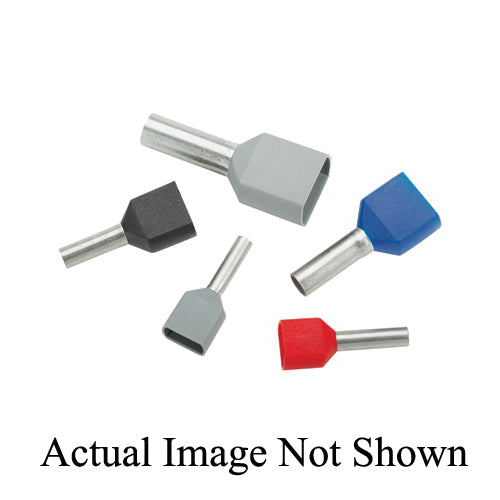

Panduit FTD78-8-D Covered Twin Wire Ferrule
Panduit - FTD78-8-D - Features
- Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.
- Panduit Pan-Term Ferrule, Type FTD Insulated Twin, Stranded Conductor, 16 AWG Conductor, 0.63 in Length, Seamless Barrel, 1/4 in OD Barrel, 7/16 in L Wire Strip, 0.13 in Dia Maximum Wire Insulation, Polypropylene Insulation, 221 deg F, Copper, Tin Plated, Black
- Polypropylene insulation housing
- Continuously molded design provides consistent placement of ferrules in tool to ensure fast, reliable terminations
- Designed for use with the semi-automatic ferrule crimping tool CT-1000 for medium volume applications
Specifications
Specifications
Panduit - FTD78-8-D - Product Categories
- Wire Termination
- Ferrules
Panduit - FTD78-8-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FTD78-8-D |
| Item Description | Pan-Term Ftd78-8-D Twin Wire Ferrule, Black, 8Mm Pin L, Pk500 |
| Ferrule Type | Twin Wire |
| Cover Material | Polypropylene |
| Copper Conductor Size (AWG) | #16 |
| Maximum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| UL Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL94-HB |
| Wire Strip Length (In.) | 7/16 |
| Wire Strip Length (mm) | 11.2 |
| Pin Length (In.) | 0.31 |
| Pin Length (mm) | 8 |
| Inside Diameter (In.) | 0.09 |
| Inside Diameter (mm) | 2.3 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Operating Temperature (°C) | -54 |
| Minimum Operating Temperature (°F) | -60 |
| Maximum Wire Insulation Diameter (In.) | 0.12 |
| Maximum Wire Insulation Diameter (mm) | 3 |
| Outer Diameter (In.) | 1 |
| Outer Diameter (mm) | 2.6 |
| Overall Length (In.) | 0.63 |
| Overall Length (mm) | 16 |
| Product Type | Covered Twin Wire Ferrule |
| Standards Met | DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F |
| Finish/Coating | Tin-Plated |
| For Use With | CT-1002, CT-1003, CT-1090,CT-1123, CT-1160, CT-1170, CT-2300/ST WITH CD-090, CT-2500/L (CT-2523CH), CTFP-25, CTFP-40 |
| Packaging Type | Bag |
| Base Material | Copper |
| Color Code | Black |
| Sub Brand | Pan-Term |
| Part Features | Twin Wire Polypropylene insulation housing conforms to DIN color requirements Meets DIN, UL and CSA standards for twin wire containment Funnel entry for faster insertion and lower installed cost Designed with a seamless barrel to contain loose wire strands for superior terminations Eases insertion of wire into terminal block Suitable for limited space panel applications Multiple pin lengths available for a variety of terminal blocks |
| MPN: | FTD78-8-D |
| Barrel Size: | 1/4 in OD |
| Barrel Type: | Seamless |
| Color: | Black |
| Conductor Size: | 16 AWG |
| Conductor Type: | Stranded |
| Finish: | Tin Plated |
| Length: | 0.63 in |
| Material: | Copper |
| Series: | FTD |
| Specifications: | 7/16 in L Wire Strip, 0.13 in Dia Maximum Wire Insulation, Polypropylene Insulation |
| Temperature Rating: | 221 deg F |
| Type: | Type FTD Insulated Twin |
Panduit - FTD78-8-D - Package Information
| UPC | 07498376310 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.1912 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - FTD78-8-D - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
